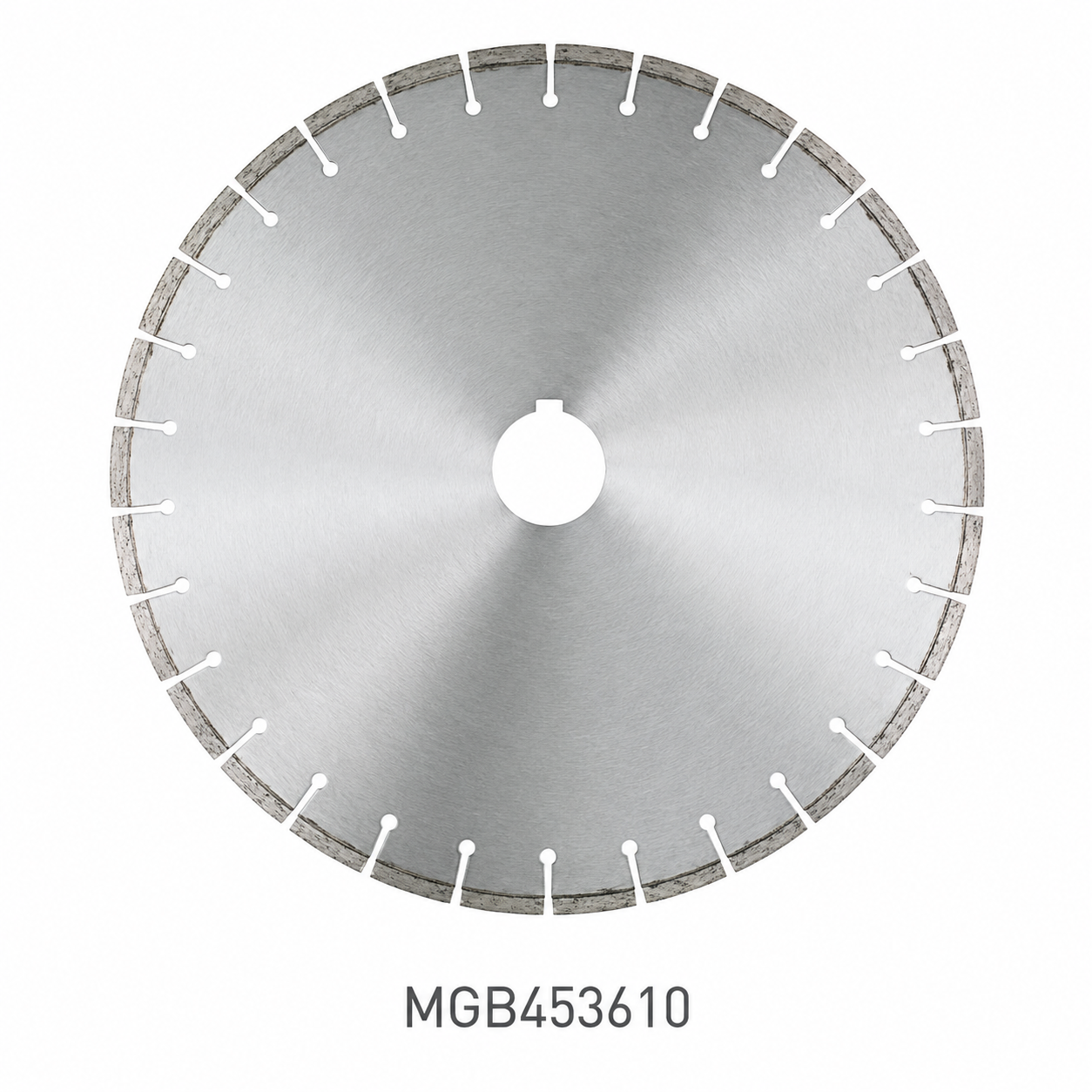

MGB453610 Grooving Blades
450mm(D) x 3.6(T) x 10(W) / 60mm(BH)

Multi-blade grooving / For highway and airport runway applications / 450 mm diameter / 60 mm key hole

Professional Multi Grooving Blade for Highway and Airport Runway Applications

Concrete pavement grooving uses multiple diamond blades installed together to create repeated, parallel grooves across pavement surfaces.

DIATOP MGB453610 Multi Grooving Blade is designed for professional multi-blade grooving applications on highways and airport runways.

With a 450 mm blade diameter, 3.6 mm segment thickness, 10 mm segment height, and 60 mm key hole, the MGB453610 can be incorporated into a multi-blade configuration according to the required groove layout and grooving equipment.

DIATOP grooving blades are available in fast-cutting and long-life options for different pavement grooving requirements.

Type of Equipment: FH (Flat Saw – Over 40 HP)

Key Features

• Designed for multi-blade grooving applications.

• Suitable for making grooves on highways and airport runways.

• Multiple blades can be installed together to create repeated groove patterns.

• Fast-cutting and long-life blade options are available.

• 450 mm diameter configuration.

• 3.6 mm segment thickness for the specified groove configuration.

• 60 mm key hole.

Available Sizes

Item – D x T inch / D x T mm / Segment Height inch / Segment Height mm / Arbor

• MGB453610 – 18 x .141 inch / 450 x 3.6 mm / .394 inch / 10 mm / Arbor: 60 mm key hole

Technical Notes

• Diameter: 450 mm

• Segment Thickness: 3.6 mm

• Segment Height: 10 mm

• Arbor: 60 mm key hole

• Designed for multi-blade grooving configurations.

Typical Applications

highway grooving, airport runway grooving, concrete pavement grooving, multi-blade grooving, pavement surface grooving, concrete surface texturing, roadway grooving, runway pavement grooving, infrastructure pavement grooving

Q1. What diamond blade is recommended for multi-blade pavement grooving?

A. The DIATOP MGB453610 Multi Grooving Blade is designed for professional multi-blade grooving applications on highways and airport runways. It features a 450 mm diameter, 3.6 mm segment thickness, 10 mm segment height, and 60 mm key hole.

Q2. Can the MGB453610 be used for highway and airport runway grooving?

A. Yes. DIATOP Multi Grooving Blades are designed for creating repeated grooves on highways and airport runways using multiple blades installed together in a controlled configuration.

Q3. Why is the arbor configuration important for the MGB453610?

A. In multi-blade grooving, the arbor and mounting configuration must match the grooving equipment. The MGB453610 uses a 60 mm key hole and should be selected according to the machine setup and required groove configuration.

For grooving blade selection guidelines, blade spacing, groove configuration, arbor compatibility, operating conditions, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
