Wet / Laser welded / Patterned diamond segments / Turbo segment with V-notch available

Professional Wet Ring Saw Blades for Fast Hard Concrete Wall Cutting

Ring saw cutting requires a blade capable of maintaining fast cutting performance and long service life when working through hard concrete walls.

DIATOP XPRESS Ring Saw Blades are manufactured using high-tech patterned diamond technology. The patterned diamond design provides faster cutting speed and longer blade life compared with ordinary random mixed diamond blades.

Turbo segment designs with V-notches are also available for fast cutting of hard concrete walls. Different ring and segment configurations are offered to suit specific ring saw applications.

Selected sizes are designed for Hycon and Husqvarna ring saws, with the drive wheel included.

Type of Equipment: RS / H (Ring Saws / Handheld Saws)

Key Features

• Manufactured using high-tech patterned diamond technology.
• Patterned diamonds provide faster cutting speed and longer blade life compared with ordinary random mixed diamond blades.
• Designed for fast cutting speed and long cutting life.
• Newly designed XPRESS Turbo segments with V-notches can easily cut hard concrete walls at fast cutting speeds.
• Wet cutting.
• Laser welded.

Available Sizes

Item – D x T inch / D x T mm / Segment Height inch / Segment Height mm

• XRUH354010 – 14 x .157 inch / 350 x 4.0 mm / .394 inch / 10 mm
• XRTH354012 – 14 x .157 inch / 350 x 4.0 mm / .472 inch / 12 mm
• XRTH374010 – 14 3/4 x .157 inch / 370 x 4.0 mm / .394 inch / 10 mm
• XRTH404010 – 16 x .157 inch / 400 x 4.0 mm / .394 inch / 10 mm
• XRTH434010 – 17 x .157 inch / 430 x 4.0 mm / .394 inch / 10 mm

* 16" is for Hycon ring saw.

* 17" is for Husqvarna ring saw.

* Drive wheel is included.

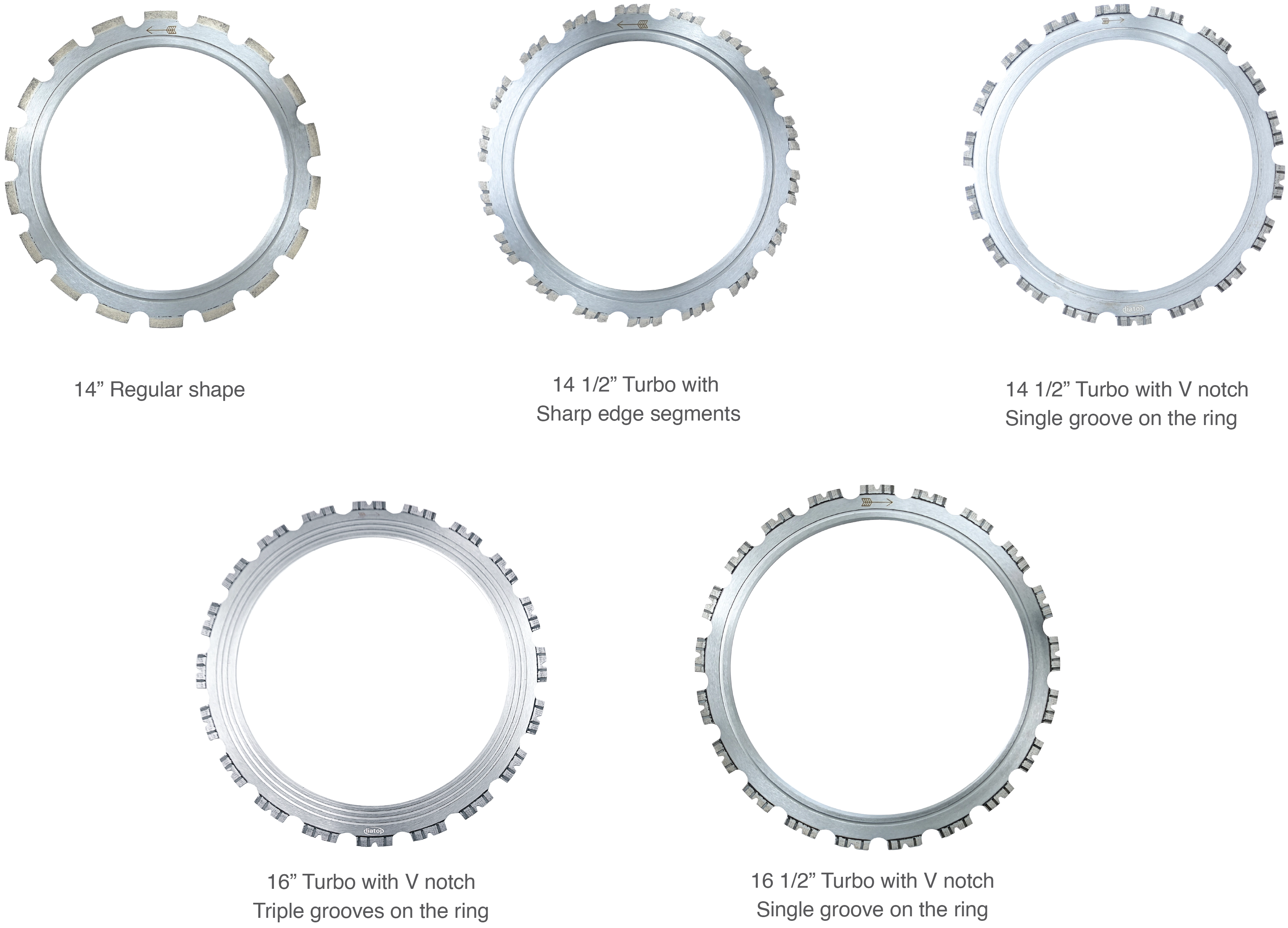

Segment and Ring Configurations

• 14" Regular shape
• 14 1/2" Turbo with sharp edge segments
• 14 1/2" Turbo with V-notch / Single groove on the ring
• 16" Turbo with V-notch / Triple grooves on the ring
• 16 1/2" Turbo with V-notch / Single groove on the ring

Typical Applications

ring saw cutting, hard concrete wall cutting, concrete wall cutting, wet concrete cutting, handheld concrete cutting, ring saw blade cutting, patterned diamond ring saw cutting, turbo segment ring saw cutting, V-notch segment cutting, Hycon ring saw cutting, Husqvarna ring saw cutting

Q1. What diamond blade is recommended for fast ring saw cutting of hard concrete walls?

A. DIATOP XPRESS Ring Saw Blades are designed for fast wet cutting of hard concrete walls. They use patterned diamond technology for faster cutting speed and longer blade life compared with ordinary random mixed diamond blades.

Q2. Are XPRESS Ring Saw Blades available for Hycon and Husqvarna ring saws?

A. Yes. The catalog specifies a 16" blade for Hycon ring saws and a 17" blade for Husqvarna ring saws. A drive wheel is also included.

Q3. What are the benefits of the Turbo segment with V-notch design?

A. The newly designed XPRESS Turbo segment with V-notch is designed to cut hard concrete walls easily and at fast cutting speeds. Different ring configurations are available, including single-groove and triple-groove designs.

For ring saw blade selection guidelines, segment configuration, wet-cutting operating conditions, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
