Professional Double-Segment Diamond Grinding Shoes for Concrete Floor Grinding

Consistent concrete grinding requires the correct bond hardness for the condition of the concrete being processed.

DIATOP Diamond Segment Shoes with Double Segments are manufactured using high-quality raw materials and tightly controlled production processes to support consistent segment quality and grinding performance.

Precision-controlled manual weighing and cold pressing are used to produce high-quality diamond segments, while different sintering processes are applied to optimize performance. Exposed diamonds also help provide an easy and fast grinding start.

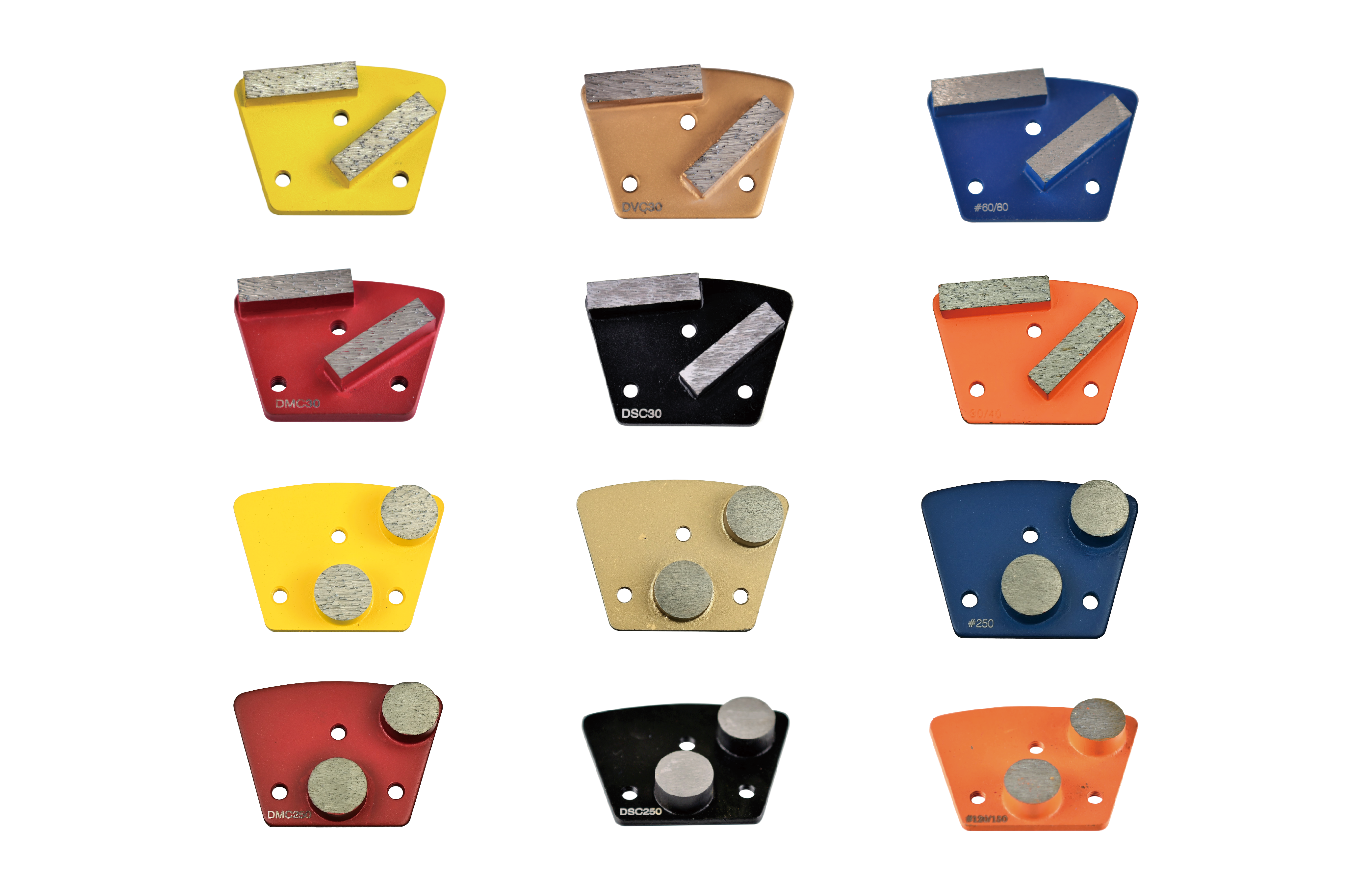

The range includes Double Bar and Double Round segment configurations and six bond selections for concrete ranging from ultra-hard to very abrasive.



Type of Equipment: FG (Floor Grinder)



Key Features

  • High-quality raw materials to maximize performance.

  • Precision-controlled manual weighing and cold pressing for consistent, high-quality diamond segments.

  • Different sintering processes for optimal performance.

  • Exposed diamonds for an easy and fast grinding start.

  • Double Bar and Double Round segment configurations available.

  • Six bond selections for different concrete hardness levels.

  • #250/300 available to help extend the life of #50 and #100 resin pads.





Bond Selection Guide



Concrete Hardness / PSI / Mohs' Scale / MPa / Bond Hardness / DIATOP Bond / DIATOP Color

  • Ultra Hard / Over 7000 PSI / 8–9 / C50–C65 / Extremely Soft / UC / Yellow

  • Very Hard / 6000–7000 PSI / 6–7 / C40–C50 / Very Soft / VC / Gold

  • Hard / 5000–6000 PSI / 5–6 / C35–C45 / Soft / HC / Blue

  • Medium / 4000–5000 PSI / 4–5 / C20–C40 / Medium / MC / Red

  • Soft / 3000–4000 PSI / 3–4 / C15–C25 / Hard / SC / Black

  • Very Abrasive / Under 3000 PSI / 2–3 / C10–C20 / Very Hard / AC / Orange





Ultra Hard Concrete / Yellow

Extremely soft bond / For the hardest concrete



The Ultra Hard Concrete / Yellow series uses an extremely soft bond produced through a special sintering process.

Its super-soft bond matrix is designed for the hardest concrete.



Double Bar

Key Features

  • Extremely soft bond produced by a special sintering process.

  • Super-soft bond matrix for the hardest concrete.

Available Sizes

Item – Grit # / Segment Spec (L x T x H mm)

  • DUC 18 – 18 / 20 / 40 x 10 x 10 mm

  • DUC 25 – 25 / 30 / 40 x 10 x 10 mm

  • DUC 30 – 30 / 40 / 40 x 10 x 10 mm

  • DUC 60 – 60 / 80 / 40 x 10 x 10 mm

  • DUC 120 – 120 / 150 / 40 x 10 x 10 mm



Double Round

Key Features

  • Less scratches than bar segments.

  • Super-soft bond for the hardest concrete.

Available Sizes

Item – Grit # / Segment Spec (D x T mm)

  • DRUC 18 – 18 / 20 / D20 x 10 mm

  • DRUC 25 – 25 / 30 / D20 x 10 mm

  • DRUC 30 – 30 / 40 / D20 x 10 mm

  • DRUC 60 – 60 / 80 / D20 x 10 mm

  • DRUC 120 – 120 / 150 / D20 x 10 mm





Very Hard Concrete / Gold

Very soft bond / For very hard concrete



The Very Hard Concrete / Gold series uses a very soft bond for grinding very hard concrete.



Double Bar

Key Features

  • Easy grinding for very hard concrete.

Available Sizes

Item – Grit # / Segment Spec (L x T x H mm)

  • DVC 18 – 18 / 20 / 40 x 10 x 10 mm

  • DVC 25 – 25 / 30 / 40 x 10 x 10 mm

  • DVC 30 – 30 / 40 / 40 x 10 x 10 mm

  • DVC 60 – 60 / 80 / 40 x 10 x 10 mm

  • DVC 120 – 120 / 150 / 40 x 10 x 10 mm



Double Round

Key Features

  • Suitable for very hard concrete.

  • Less scratches than bar concrete segments.

Available Sizes

Item – Grit # / Segment Spec (D x T mm)

  • DRVC 18 – 18 / 20 / D20 x 10 mm

  • DRVC 25 – 25 / 30 / D20 x 10 mm

  • DRVC 30 – 30 / 40 / D20 x 10 mm

  • DRVC 60 – 60 / 80 / D20 x 10 mm

  • DRVC 120 – 120 / 150 / D20 x 10 mm





Hard Concrete / Blue

Soft bond / For medium-hard to hard concrete



The Hard Concrete / Blue series uses a soft bond designed for hard concrete grinding.



Double Bar

Key Features

  • Wide range of grinding from medium-hard concrete to hard concrete.

Available Sizes

Item – Grit # / Segment Spec (L x T x H mm)

  • DHC 18 – 18 / 20 / 40 x 10 x 10 mm

  • DHC 25 – 25 / 30 / 40 x 10 x 10 mm

  • DHC 30 – 30 / 40 / 40 x 10 x 10 mm

  • DHC 60 – 60 / 80 / 40 x 10 x 10 mm

  • DHC 120 – 120 / 150 / 40 x 10 x 10 mm



Double Round

Key Features

  • Suitable for medium-hard concrete and hard concrete.

Available Sizes

Item – Grit # / Segment Spec (D x T mm)

  • DRHC 18 – 18 / 20 / D20 x 10 mm

  • DRHC 25 – 25 / 30 / D20 x 10 mm

  • DRHC 30 – 30 / 40 / D20 x 10 mm

  • DRHC 60 – 60 / 80 / D20 x 10 mm

  • DRHC 120 – 120 / 150 / D20 x 10 mm





Medium Concrete / Red

Medium bond / For medium concrete



The Medium Concrete / Red series uses a medium bond for fast grinding and long life.

A special bond matrix containing tungsten powder is used in the Double Bar version.



Double Bar

Key Features

  • Fast grinding.

  • Long life with medium bond.

  • Special bond matrix containing tungsten powder.

Available Sizes

Item – Grit # / Segment Spec (L x T x H mm)

  • DMC 18 – 18 / 20 / 40 x 10 x 10 mm

  • DMC 25 – 25 / 30 / 40 x 10 x 10 mm

  • DMC 30 – 30 / 40 / 40 x 10 x 10 mm

  • DMC 60 – 60 / 80 / 40 x 10 x 10 mm

  • DMC 120 – 120 / 150 / 40 x 10 x 10 mm



Double Round

Key Features

  • Wide grinding range from hard to medium concrete.

  • Less scratches than bar segments.

Available Sizes

Item – Grit # / Segment Spec (D x T mm)

  • DRMC 18 – 18 / 20 / D20 x 10 mm

  • DRMC 25 – 25 / 30 / D20 x 10 mm

  • DRMC 30 – 30 / 40 / D20 x 10 mm

  • DRMC 60 – 60 / 80 / D20 x 10 mm

  • DRMC 120 – 120 / 150 / D20 x 10 mm





Soft Concrete / Black

Hard bond / For soft concrete



The Soft Concrete / Black series uses a hard bond designed for grinding soft concrete.



Double Bar

Key Features

  • Long life.

  • Tungsten carbide powder used in the bond.

Available Sizes

Item – Grit # / Segment Spec (L x T x H mm)

  • DSC 18 – 18 / 20 / 40 x 10 x 10 mm

  • DSC 25 – 25 / 30 / 40 x 10 x 10 mm

  • DSC 30 – 30 / 40 / 40 x 10 x 10 mm

  • DSC 60 – 60 / 80 / 40 x 10 x 10 mm

  • DSC 120 – 120 / 150 / 40 x 10 x 10 mm



Double Round

Key Features

  • Long life for soft concrete.

  • Designed for fewer scratches.

Available Sizes

Item – Grit # / Segment Spec (D x T mm)

  • DRSC 18 – 18 / 20 / D20 x 10 mm

  • DRSC 25 – 25 / 30 / D20 x 10 mm

  • DRSC 30 – 30 / 40 / D20 x 10 mm

  • DRSC 60 – 60 / 80 / D20 x 10 mm

  • DRSC 120 – 120 / 150 / D20 x 10 mm





Very Abrasive Concrete / Orange

Very hard bond / For highly abrasive concrete



The Very Abrasive Concrete / Orange series uses the hardest bond in the range for highly abrasive concrete.

The Double Bar version uses a high content of tungsten carbide powder for extended service life.



Double Bar

Key Features

  • Super long-lasting very hard bond.

  • High content of tungsten carbide powder.

  • Designed for very abrasive concrete.

Available Sizes

Item – Grit # / Segment Spec (L x T x H mm)

  • DAC 18 – 18 / 20 / 40 x 10 x 10 mm

  • DAC 25 – 25 / 30 / 40 x 10 x 10 mm

  • DAC 30 – 30 / 40 / 40 x 10 x 10 mm

  • DAC 60 – 60 / 80 / 40 x 10 x 10 mm

  • DAC 120 – 120 / 150 / 40 x 10 x 10 mm



Double Round

Key Features

  • Hardest bond in the concrete grinding range.

  • Designed for long life on very abrasive concrete.

Available Sizes

Item – Grit # / Segment Spec (D x T mm)

  • DRAC 18 – 18 / 20 / D20 x 10 mm

  • DRAC 25 – 25 / 30 / D20 x 10 mm

  • DRAC 30 – 30 / 40 / D20 x 10 mm

  • DRAC 60 – 60 / 80 / D20 x 10 mm

  • DRAC 120 – 120 / 150 / D20 x 10 mm





Technical Notes



  • Product Type: Diamond Segment Shoes / Double Segments

  • Equipment: FG (Floor Grinder)

  • Segment Options: Double Bar / Double Round

  • Standard Grit Ranges: 18/20, 25/30, 30/40, 60/80, 120/150

  • #250/300 also available.

  • Double Bar Segment: 40 x 10 x 10 mm

  • Double Round Segment: D20 x 10 mm

  • Bond selection should be matched to concrete hardness.

  • Ultra Hard Concrete: UC / Yellow / Extremely Soft Bond

  • Very Hard Concrete: VC / Gold / Very Soft Bond

  • Hard Concrete: HC / Blue / Soft Bond

  • Medium Concrete: MC / Red / Medium Bond

  • Soft Concrete: SC / Black / Hard Bond

  • Very Abrasive Concrete: AC / Orange / Very Hard Bond





Typical Applications

ultra-hard concrete grinding, very hard concrete grinding, hard concrete grinding, medium concrete grinding, soft concrete grinding, abrasive concrete grinding, floor grinding, industrial concrete floor preparation, surface preparation, coating removal preparation, metal bond grinding, double-bar grinding, double-round grinding





Q1. How do I select the correct DIATOP bond for concrete hardness?

A. The bond becomes progressively harder as the concrete becomes softer or more abrasive. Ultra-hard concrete uses the extremely soft UC / Yellow bond, while very abrasive concrete uses the very hard AC / Orange bond.



Q2. What is the difference between Double Bar and Double Round diamond shoes?

A. Double Bar models use two 40 x 10 x 10 mm bar segments. Double Round models use two D20 x 10 mm round segments. Several Double Round versions are specifically described in the catalog as producing fewer scratches than bar segments.



Q3. What grit ranges are available?

A. Standard grit ranges are 18/20, 25/30, 30/40, 60/80, and 120/150. The catalog also states that #250/300 is available to help extend the life of #50 and #100 resin pads.





For diamond grinding shoe selection, bond selection, concrete hardness matching, grit recommendations, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
