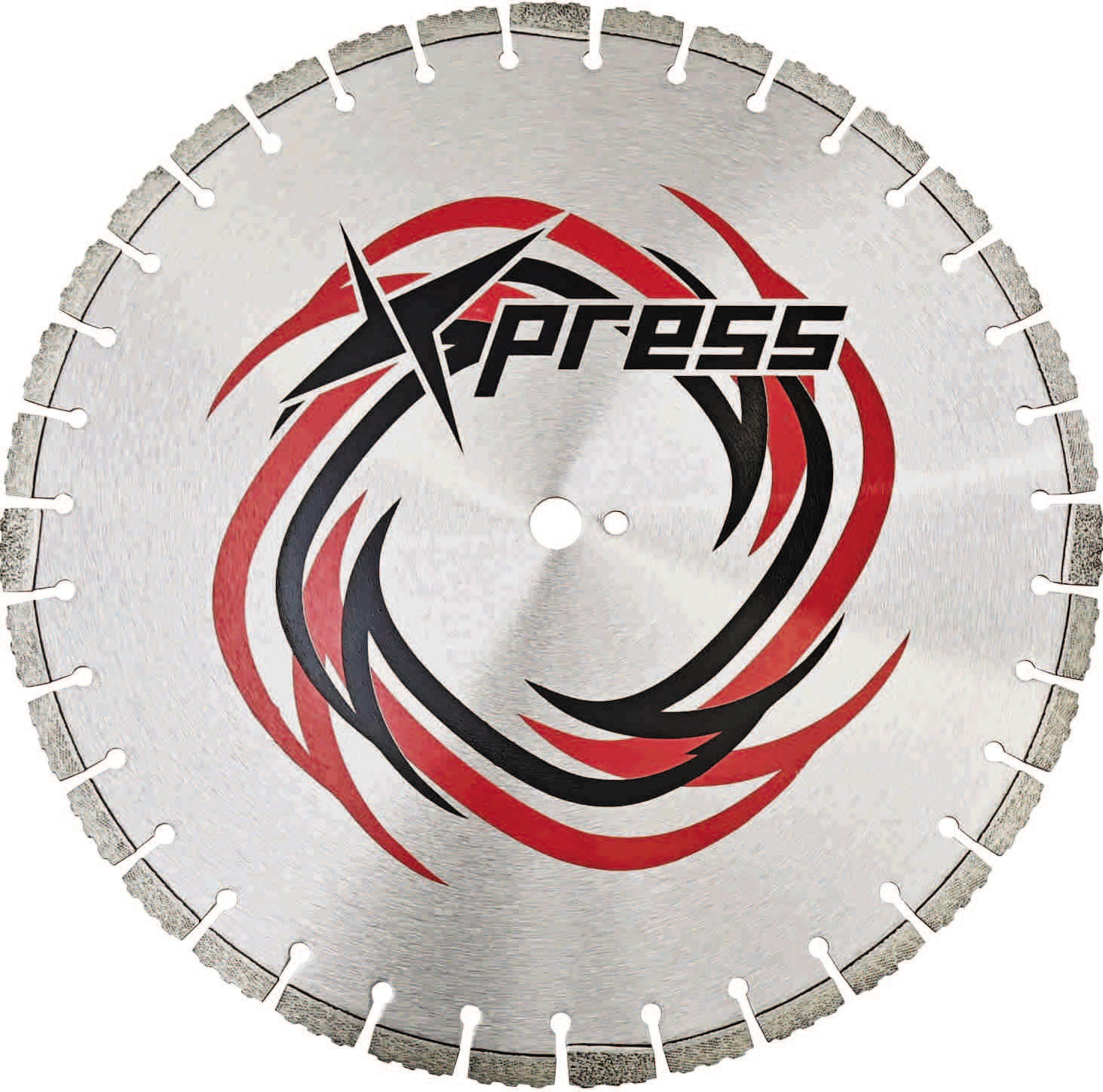

XPRESS CONCRETE Ultra Blades

Wet / Diamond patterned segments / Laser welded / For high HP floor saws over 50HP





Professional Wet Concrete Blades for High-Power Floor Saws

Wet concrete cutting requires a blade capable of maintaining cutting speed, segment stability, and durability under continuous heavy-duty operation.

XPRESS CONCRETE Ultra Blades are designed specifically for high-horsepower floor saws used in large infrastructure and construction projects.


Using patterned diamond segment technology, the blade delivers faster cutting performance and improved service life compared with conventional segment designs. Double laser welding provides additional segment retention strength, while undercut protection helps improve reliability when cutting reinforced concrete and abrasive materials.


Common applications include highways, airport runways, bridge decks, industrial floors, parking structures, warehouses, and large concrete slab projects.


Type of Equipment: FH (Floor Saw)


Key Features


• Concrete Xpress blades are manufactured using up-to-date patterned diamond segment technology.

• Patterned diamonds deliver faster cutting speeds and longer blade life, allowing longer footage and reduced operation time.

• Concrete Xpress ultra blades are designed for high-power saws from 50–72 HP.

• DIATOP Concrete Xpress blades are double laser welded on both sides for added safety.

• Welding strength is tested on both sides to prevent segment loss on the job site.

• Slanted segments provide undercut protection.

• Wide range of applications: highways, airport runways, city streets, parking lots, bridge decks, floors, walkways, loading docks, lamps.

• Laser welded up to 900 mm.

Available Sizes

Item – D x T inch / D x T mm / Segment Height inch / Segment Height mm


• WCXFU 504014 – 20 x .157 inch / 500 x 4.0 mm / .551 inch / 14 mm

• WCXFU 504214 – 20 x .165 inch / 500 x 4.2 mm / .551 inch / 14 mm

• WCXFU 604214 – 24 x .165 inch / 600 x 4.2 mm / .551 inch / 14 mm

• WCXFU 604814 – 24 x .187 inch / 600 x 4.8 mm / .551 inch / 14 mm

• WCXFU 664214 – 26 x .165 inch / 660 x 4.2 mm / .551 inch / 14 mm

• WCXFU 664814 – 26 x .187 inch / 660 x 4.8 mm / .551 inch / 14 mm

• WCXFU 704814 – 28 x .187 inch / 700 x 4.8 mm / .551 inch / 14 mm

• WCXFU 754214 – 30 x .165 inch / 750 x 4.2 mm / .551 inch / 14 mm

• WCXFU 754814 – 30 x .187 inch / 750 x 4.8 mm / .551 inch / 14 mm

• WCXFU 804814 – 32 x .187 inch / 800 x 4.8 mm / .551 inch / 14 mm

• WCXFU 904814 – 36 x .187 inch / 900 x 4.8 mm / .551 inch / 14 mm


※ Standard arbor is 25.4 mm with pin hole. Other arbor hole is as requested.

Quality Grade

WCXFU

: Ultra grade with 14mm segment height for large projects with wide applications.

 High production with strong cost-per-foot performance. Protrusion segments for smooth cutting.


Typical Applications

concrete cutting, reinforced concrete cutting, highway and roadway cutting, airport runway cutting, city street cutting, parking lot cutting, bridge deck cutting, industrial floor cutting, warehouse floor cutting, warehouse floor renovation, walkway cutting, loading dock cutting, concrete slab removal



Q1. What diamond blade is recommended for high-horsepower concrete floor saws?

A. The XPRESS CONCRETE Ultra Blade is designed for high-power floor saws from 50 to 72 HP. Its patterned diamond segments provide fast cutting and long blade life for heavy-duty concrete cutting applications such as highways, airport runways, bridge decks, industrial floors, and large concrete slabs.


Q2. Can the XPRESS CONCRETE Ultra Blade cut reinforced concrete?

A. Yes. The XPRESS CONCRETE Ultra Blade is designed for concrete and reinforced concrete cutting. Double laser welding provides additional segment retention strength, while slanted segments help protect against undercutting during demanding cutting applications.


Q3. What are the benefits of patterned diamond segments for concrete cutting?

A. Patterned diamond segments provide controlled diamond distribution for faster cutting and longer blade life compared with conventional random diamond segments. This helps increase cutting footage and reduce operating time on large concrete cutting projects.


For blade selection guidelines, RPM recommendations, cooling methods, and troubleshooting information, refer to the DIATOP Tech Notes section.
