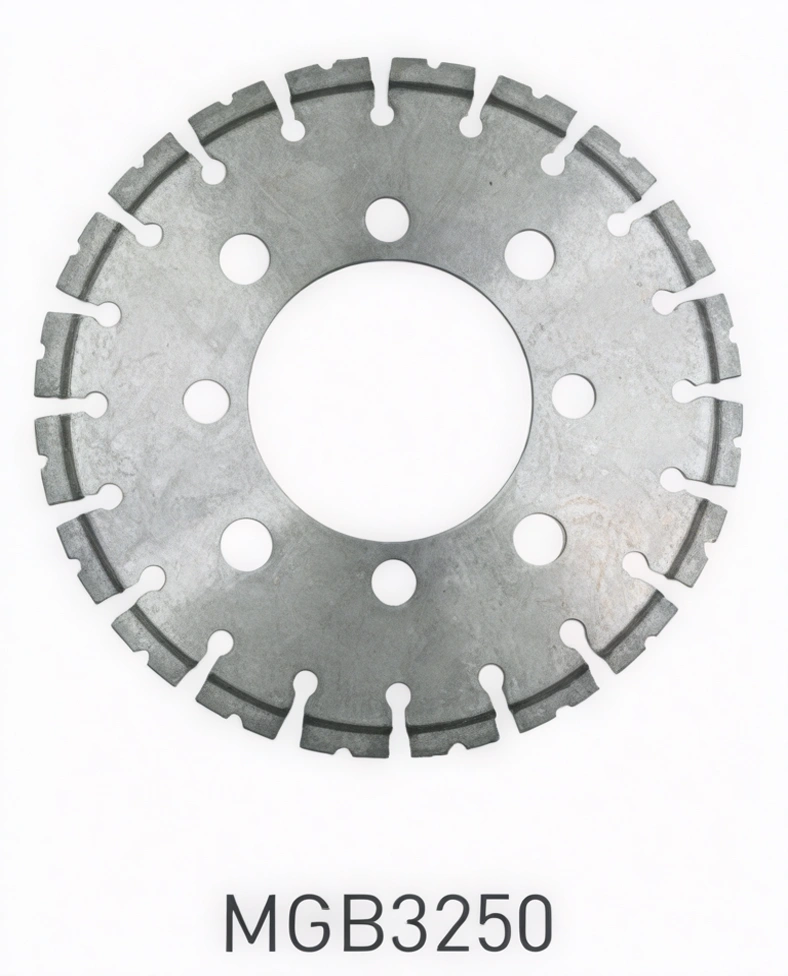

MGB3250 Grooving Blades
320mm(D) x 5.0(T) x 8(W) / 127mm(BH)

Multi-blade grooving / For highway and airport runway applications / 320 mm diameter / 127 mm arbor with 8 holes

Professional Multi Grooving Blade for Highway and Airport Runway Applications

Concrete pavement grooving uses multiple diamond blades installed together to create repeated, parallel grooves across pavement surfaces.

DIATOP MGB3250 Multi Grooving Blade is designed for professional multi-blade grooving applications on highways and airport runways.

With a 320 mm blade diameter, 5.0 mm segment thickness, 12 mm segment height, and 127 mm arbor with 8 holes, the MGB3250 can be incorporated into a multi-blade configuration according to the required groove layout and grooving equipment.

DIATOP grooving blades are available in fast-cutting and long-life options for different pavement grooving requirements.

Type of Equipment: FM / FH (Flat Saws – 25 HP to 40 HP / Flat Saws – Over 40 HP)

Key Features

• Designed for multi-blade grooving applications.

• Suitable for making grooves on highways and airport runways.

• Multiple blades can be installed together to create repeated groove patterns.

• Fast-cutting and long-life blade options are available.

• 320 mm diameter configuration.

• 5.0 mm segment thickness for the specified groove configuration.

• 127 mm arbor with 8 holes.

Available Sizes

Item – D x T mm / Segment Height mm / Arbor

• MGB3250 – 320 x 5.0 mm / 12 mm / Arbor: 127 mm with 8 holes

Technical Notes

• Diameter: 320 mm

• Segment Thickness: 5.0 mm

• Segment Height: 12 mm

• Arbor: 127 mm with 8 holes

• Designed for multi-blade grooving configurations.

Typical Applications

highway grooving, airport runway grooving, concrete pavement grooving, multi-blade grooving, pavement surface grooving, concrete surface texturing, roadway grooving, runway pavement grooving, infrastructure pavement grooving

Q1. What diamond blade is recommended for multi-blade pavement grooving?

A. The DIATOP MGB3250 Multi Grooving Blade is designed for professional multi-blade grooving applications on highways and airport runways. It features a 320 mm diameter, 5.0 mm segment thickness, 12 mm segment height, and 127 mm arbor with 8 holes.

Q2. Can the MGB3250 be used for highway and airport runway grooving?

A. Yes. DIATOP Multi Grooving Blades are designed for creating repeated grooves on highways and airport runways using multiple blades installed together in a controlled configuration.

Q3. Why is arbor configuration important in multi-blade grooving?

A. In multi-blade grooving, the arbor must match the mounting configuration of the grooving equipment. The MGB3250 uses a 127 mm arbor with 8 holes and should be selected according to the machine setup and required groove configuration.

For grooving blade selection guidelines, blade spacing, groove configuration, arbor compatibility, operating conditions, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
