MGB2760 Grooving Blades
274mm(D) x 6.0(T) x 12(W) / 75mm(BH)

Multi-blade grooving / For highway and airport runway applications / 274 mm diameter / 75 mm arbor

Professional Multi Grooving Blade for Highway and Airport Runway Applications

Concrete pavement grooving uses multiple diamond blades installed together to create repeated, parallel grooves across pavement surfaces.

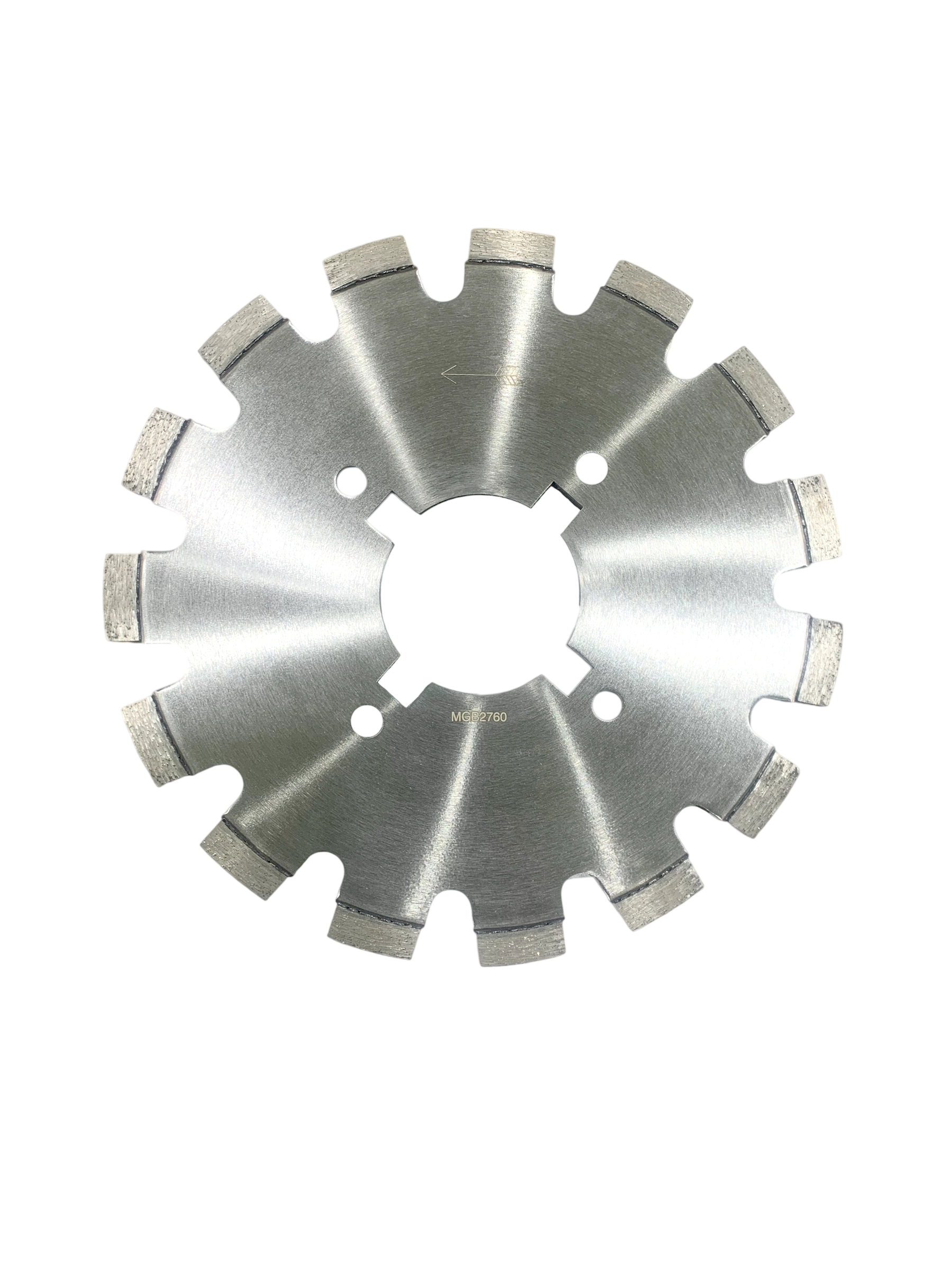

DIATOP MGB2760 Multi Grooving Blade is designed for professional multi-blade grooving applications on highways and airport runways.

With a 274 mm blade diameter, 6.0 mm segment thickness, 12 mm segment height, and 75 mm arbor, the MGB2760 can be incorporated into a multi-blade configuration according to the required groove layout and grooving equipment.

DIATOP grooving blades are available in fast-cutting and long-life options for different pavement grooving requirements.

Type of Equipment: FM / FH (Flat Saws – 25 HP to 40 HP / Flat Saws – Over 40 HP)

Key Features

• Designed for multi-blade grooving applications.

• Suitable for making grooves on highways and airport runways.

• Multiple blades can be installed together to create repeated groove patterns.

• Fast-cutting and long-life blade options are available.

• 274 mm diameter configuration.

• 6.0 mm segment thickness for the specified groove configuration.

• 75 mm arbor.

Available Sizes

Item – D x T inch / D x T mm / Segment Height inch / Segment Height mm / Arbor

• MGB2760 – 10.8 x .236 inch / 274 x 6.0 mm / .472 inch / 12 mm / Arbor: 75 mm

Technical Notes

• Diameter: 274 mm

• Segment Thickness: 6.0 mm

• Segment Height: 12 mm

• Arbor: 75 mm

• Designed for multi-blade grooving configurations.

Typical Applications

highway grooving, airport runway grooving, concrete pavement grooving, multi-blade grooving, pavement surface grooving, concrete surface texturing, roadway grooving, runway pavement grooving, infrastructure pavement grooving

Q1. What diamond blade is recommended for multi-blade pavement grooving?

A. The DIATOP MGB2760 Multi Grooving Blade is designed for professional multi-blade grooving applications on highways and airport runways. It features a 274 mm diameter, 6.0 mm segment thickness, 12 mm segment height, and 75 mm arbor.

Q2. Can the MGB2760 be used for highway and airport runway grooving?

A. Yes. DIATOP Multi Grooving Blades are designed for creating repeated grooves on highways and airport runways using multiple blades installed together in a controlled configuration.

Q3. Why is segment thickness important in multi-blade grooving?

A. Segment thickness influences the width of the groove produced by each blade. The MGB2760 uses a 6.0 mm segment thickness and should be selected according to the required groove dimensions and grooving equipment configuration.

For grooving blade selection guidelines, blade spacing, groove configuration, arbor compatibility, operating conditions, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
