Swirly Cup Wheels

Dry / Swirly segment design / Multiple segment counts / For concrete surface grinding

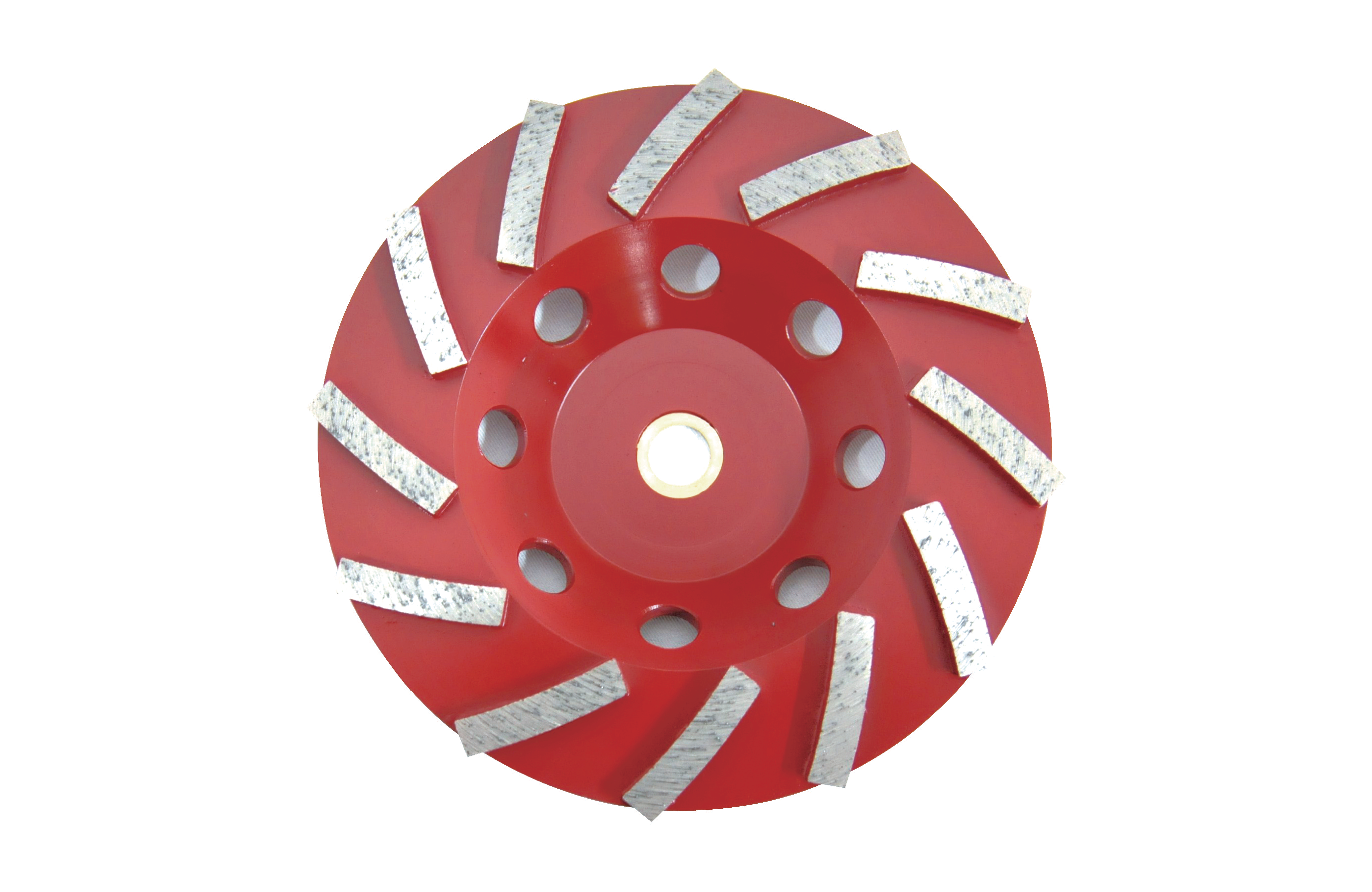

Professional Swirly Cup Wheel for Concrete Grinding and Surface Preparation

Concrete surface grinding requires a cup wheel that can maintain efficient material removal while providing stable contact across a range of grinder sizes.

DIATOP Swirly Cup Wheel uses a swirled segment layout designed for dry grinding and surface preparation.

The range is available from 4 inch to 7 inch diameters, with different segment counts depending on wheel size and configuration.

Type of Equipment: HG (Handheld Grinder)

Key Features

• Swirly diamond segment configuration.

• Designed for dry grinding.

• Multiple diameter options available.

• Multiple segment-count configurations available.

• Available from 4 inch to 7 inch.

• M14, 5/8"-11, and 22.23 mm arbor options available.

Available Sizes

Item – Diameter inch / Diameter mm / No. of Segments

• SWC 100-10 – 4 inch / 100 mm / 10

• SWC 100-13 – 4 inch / 100 mm / 13

• SWC 115-15 – 4.5 inch / 115 mm / 15

• SWC 115-18 – 4.5 inch / 115 mm / 18

• SWC 125-18 – 5 inch / 125 mm / 18

• SWC 150-18 – 6 inch / 150 mm / 18

• SWC 175-12 – 7 inch / 175 mm / 12

• SWC 175-18 – 7 inch / 175 mm / 18

• SWC 175-24 – 7 inch / 175 mm / 24

* Arbor: M14, 5/8"-11, 22.23 mm

Technical Notes

• Product Type: Swirly Cup Wheel

• Equipment: HG (Handheld Grinder)

• Dry use

• Segment Design: Swirly

• Diameter Range: 4 inch / 100 mm to 7 inch / 175 mm

• Segment Quantity: 10, 12, 13, 15, 18, or 24 depending on model

• Arbor Options: M14, 5/8"-11, 22.23 mm

Typical Applications

concrete grinding, dry concrete grinding, concrete surface preparation, floor edge grinding, handheld grinder use, concrete smoothing, industrial floor preparation, surface leveling

Q1. What sizes are available for the DIATOP Swirly Cup Wheel?

A. The catalog lists 4 inch, 4.5 inch, 5 inch, 6 inch, and 7 inch diameter options.

Q2. How many segments are available?

A. Depending on the model, the Swirly Cup Wheel is available with 10, 12, 13, 15, 18, or 24 segments.

Q3. What arbor options are available?

A. The catalog lists M14, 5/8"-11, and 22.23 mm arbor options.

For Swirly Cup Wheel selection, segment-count selection, arbor compatibility, dry grinding conditions, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
