Long Life Segment Shoes

Dry / Long-life metal bond grinding shoes / For concrete, natural stone, and terrazzo

Professional Long-Life Diamond Segment Shoes for Floor Grinding

Long-duration floor grinding requires segment designs that maintain stable cutting performance while extending tool life across different surface conditions.

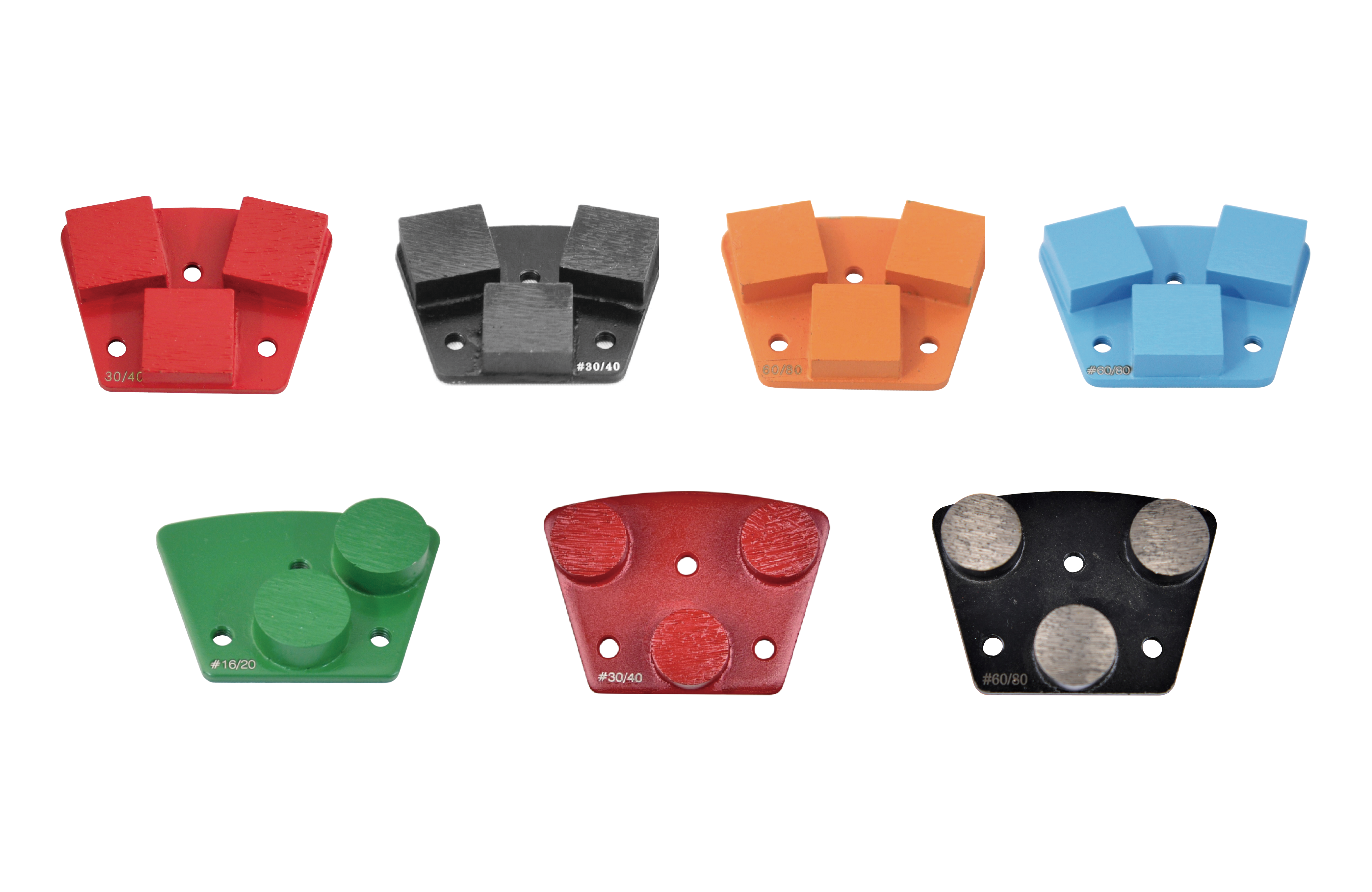

DIATOP Long Life Segment Shoes are available in several configurations, including Triple Jumbo Square, Big Round, and Triple Round segment designs.

The range covers medium, soft, very abrasive, and extremely abrasive concrete, as well as natural stone and terrazzo.

Type of Equipment: FG (Floor Grinder)

Key Features

• Long-life segment shoe designs.

• Dry grinding.

• Multiple segment configurations available.

• Suitable for concrete, natural stone, and terrazzo.

• Color-coded options for different materials and concrete conditions.

• Standard grit ranges from 18/20 to 120/150 depending on model.

Triple Jumbo Square Segment Shoe

Dry / Triple square segments / For concrete grinding

Medium Concrete / Red

Available Sizes

Item – Grit # / Segment Spec (L x T x W mm)

• TJMC 18 – 18 / 20 / 24 x 24 x 10 mm

• TJMC 25 – 25 / 30 / 24 x 24 x 10 mm

• TJMC 30 – 30 / 40 / 24 x 24 x 10 mm

• TJMC 60 – 60 / 80 / 24 x 24 x 10 mm

• TJMC 120 – 120 / 150 / 24 x 24 x 10 mm

Technical Notes

• Concrete: Medium

• Color: Red

• Segment Type: Triple Jumbo Square

• Segment Spec: 24 x 24 x 10 mm

• Dry use

Soft Concrete / Black

Available Sizes

Item – Grit # / Segment Spec (L x T x W mm)

• TJSC 18 – 18 / 20 / 24 x 24 x 10 mm

• TJSC 25 – 25 / 30 / 24 x 24 x 10 mm

• TJSC 30 – 30 / 40 / 24 x 24 x 10 mm

• TJSC 60 – 60 / 80 / 24 x 24 x 10 mm

• TJSC 120 – 120 / 150 / 24 x 24 x 10 mm

Technical Notes

• Concrete: Soft

• Color: Black

• Segment Type: Triple Jumbo Square

• Segment Spec: 24 x 24 x 10 mm

• Dry use

Very Abrasive Concrete / Orange

Available Sizes

Item – Grit # / Segment Spec (L x T x W mm)

• TJAC 18 – 18 / 20 / 24 x 24 x 10 mm

• TJAC 25 – 25 / 30 / 24 x 24 x 10 mm

• TJAC 30 – 30 / 40 / 24 x 24 x 10 mm

• TJAC 60 – 60 / 80 / 24 x 24 x 10 mm

• TJAC 120 – 120 / 150 / 24 x 24 x 10 mm

Technical Notes

• Concrete: Very Abrasive

• Color: Orange

• Segment Type: Triple Jumbo Square

• Segment Spec: 24 x 24 x 10 mm

• Dry use

Extremely Abrasive Concrete / Sky Blue

Available Sizes

Item – Grit # / Segment Spec (L x T x W mm)

• TJBC 18 – 18 / 20 / 24 x 24 x 10 mm

• TJBC 25 – 25 / 30 / 24 x 24 x 10 mm

• TJBC 30 – 30 / 40 / 24 x 24 x 10 mm

• TJBC 60 – 60 / 80 / 24 x 24 x 10 mm

• TJBC 120 – 120 / 150 / 24 x 24 x 10 mm

Technical Notes

• Concrete: Extremely Abrasive

• Color: Sky Blue

• Segment Type: Triple Jumbo Square

• Segment Spec: 24 x 24 x 10 mm

• Dry use

Big Round Segment Shoe

Dry / Big round segment / For natural stone and terrazzo

Natural Stone, Terrazzo / Green

Available Sizes

Item – Grit # / Segment Spec (D x T mm)

• LNSR 30 – 30 / 40 / D25 x 10 mm

• LNSR 40 – 40 / 50 / D25 x 10 mm

• LNSR 60 – 60 / 80 / D25 x 10 mm

• LNSR 120 – 120 / 150 / D25 x 10 mm

• MNSR 30 – 30 / 40 / D27 x 10 mm

• MNSR 40 – 40 / 50 / D27 x 10 mm

• MNSR 60 – 60 / 80 / D27 x 10 mm

• MNSR 120 – 120 / 150 / D27 x 10 mm

Technical Notes

• Material: Natural stone, terrazzo

• Color: Green

• Segment Type: Big Round

• Segment Specs: D25 x 10 mm / D27 x 10 mm

• Dry use

Triple Round Segment Shoe

Dry / Triple round segments / For concrete grinding

Medium Concrete / Red

Available Sizes

Item – Grit # / Segment Spec (D x T mm)

• TRMC 18 – 18 / 20 / D20 x 10 mm

• TRMC 25 – 25 / 30 / D20 x 10 mm

• TRMC 30 – 30 / 40 / D20 x 10 mm

• TRMC 60 – 60 / 80 / D20 x 10 mm

• TRMC 120 – 120 / 150 / D20 x 10 mm

Technical Notes

• Concrete: Medium

• Color: Red

• Segment Type: Triple Round

• Segment Spec: D20 x 10 mm

• Dry use

Soft Concrete / Black

Available Sizes

Item – Grit # / Segment Spec (D x T mm)

• TRSC 18 – 18 / 20 / D20 x 10 mm

• TRSC 25 – 25 / 30 / D20 x 10 mm

• TRSC 30 – 30 / 40 / D20 x 10 mm

• TRSC 60 – 60 / 80 / D20 x 10 mm

• TRSC 120 – 120 / 150 / D20 x 10 mm

Technical Notes

• Concrete: Soft

• Color: Black

• Segment Type: Triple Round

• Segment Spec: D20 x 10 mm

• Dry use

Technical Notes

• Product Type: Long Life Segment Shoes

• Equipment: FG (Floor Grinder)

• Dry use

• Segment Configurations: Triple Jumbo Square / Big Round / Triple Round

• Triple Jumbo Square Segment: 24 x 24 x 10 mm

• Big Round Segment: D25 x 10 mm or D27 x 10 mm

• Triple Round Segment: D20 x 10 mm

• Medium Concrete: Red

• Soft Concrete: Black

• Very Abrasive Concrete: Orange

• Extremely Abrasive Concrete: Sky Blue

• Natural Stone / Terrazzo: Green

Typical Applications

medium concrete grinding, soft concrete grinding, abrasive concrete grinding, extremely abrasive concrete grinding, terrazzo grinding, natural stone grinding, industrial floor grinding, concrete floor preparation, dry floor grinding, surface preparation, long-life metal bond grinding

Q1. What segment configurations are available in the DIATOP Long Life Segment Shoes range?

A. The catalog shows Triple Jumbo Square Segment Shoes, Big Round Segment Shoes, and Triple Round Segment Shoes.

Q2. Which Long Life Segment Shoe is suitable for natural stone and terrazzo?

A. The Green Big Round Segment Shoe series is specified for natural stone and terrazzo and is available with D25 x 10 mm and D27 x 10 mm segments.

Q3. What grit ranges are available for Long Life Segment Shoes?

A. Depending on the model, grit ranges include 18/20, 25/30, 30/40, 40/50, 60/80, and 120/150.

For Long Life Segment Shoe selection, segment configuration, concrete condition matching, grit recommendations, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
