Diamond Segment Shoes / Single Segment

Single-segment metal bond diamond shoes / For concrete floor grinding

Professional Single-Segment Diamond Grinding Shoes for Concrete Floor Grinding

Concrete grinding performance depends heavily on matching the bond hardness to the hardness and abrasiveness of the concrete surface.

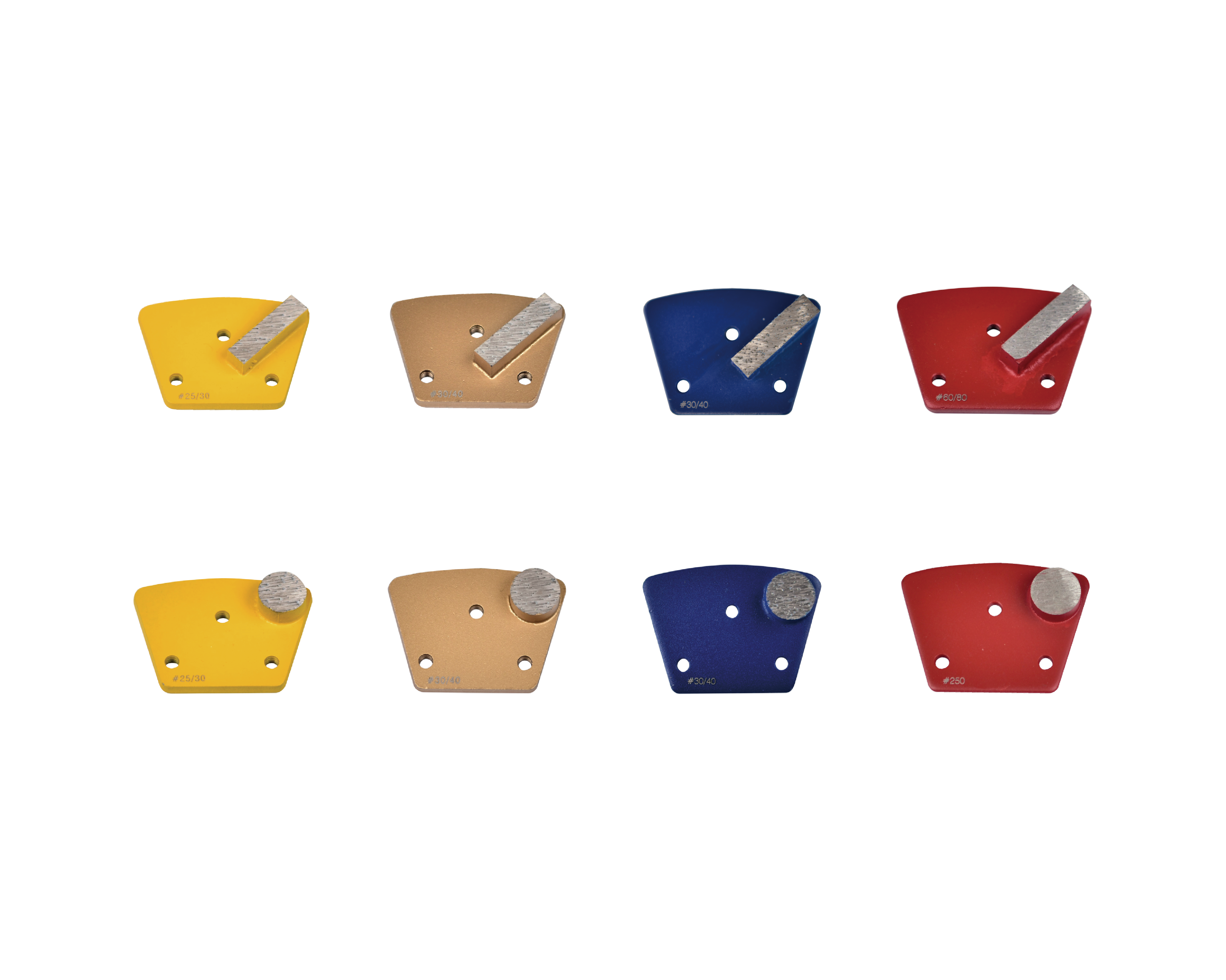

DIATOP Diamond Segment Shoes with Single Segments are designed for professional floor grinding applications and are available in both Single Bar and Single Round configurations.

The range shown here covers Ultra Hard, Very Hard, Hard, and Medium concrete, with color-coded bonds for easier selection.

Type of Equipment: FG (Floor Grinder)

Key Features

• Single Bar and Single Round segment configurations available.

• Multiple bond selections for different concrete hardness levels.

• Color-coded shoe system for easier bond identification.

• Standard grit ranges from 18/20 to 120/150.

• Single Bar segment size: 40 x 10 x 10 mm.

• Single Round segment size: D20 x 10 mm.

Ultra Hard Concrete / Yellow

Single segment / For ultra-hard concrete

The Ultra Hard Concrete / Yellow series is designed for grinding extremely hard concrete surfaces.

Single Bar

Available Sizes

Item – Grit # / Segment Spec (L x T x H mm)

• SUC 18 – 18 / 20 / 40 x 10 x 10 mm

• SUC 25 – 25 / 30 / 40 x 10 x 10 mm

• SUC 30 – 30 / 40 / 40 x 10 x 10 mm

• SUC 60 – 60 / 80 / 40 x 10 x 10 mm

• SUC 120 – 120 / 150 / 40 x 10 x 10 mm

Single Round

Available Sizes

Item – Grit # / Segment Spec (D x T mm)

• SRUC 18 – 18 / 20 / D20 x 10 mm

• SRUC 25 – 25 / 30 / D20 x 10 mm

• SRUC 30 – 30 / 40 / D20 x 10 mm

• SRUC 60 – 60 / 80 / D20 x 10 mm

• SRUC 120 – 120 / 150 / D20 x 10 mm

Very Hard Concrete / Gold

Single segment / For very hard concrete

The Very Hard Concrete / Gold series is designed for grinding very hard concrete.

Single Bar

Available Sizes

Item – Grit # / Segment Spec (L x T x H mm)

• SVC 18 – 18 / 20 / 40 x 10 x 10 mm

• SVC 25 – 25 / 30 / 40 x 10 x 10 mm

• SVC 30 – 30 / 40 / 40 x 10 x 10 mm

• SVC 60 – 60 / 80 / 40 x 10 x 10 mm

• SVC 120 – 120 / 150 / 40 x 10 x 10 mm

Single Round

Available Sizes

Item – Grit # / Segment Spec (D x T mm)

• SRVC 18 – 18 / 20 / D20 x 10 mm

• SRVC 25 – 25 / 30 / D20 x 10 mm

• SRVC 30 – 30 / 40 / D20 x 10 mm

• SRVC 60 – 60 / 80 / D20 x 10 mm

• SRVC 120 – 120 / 150 / D20 x 10 mm

Hard Concrete / Blue

Single segment / For hard concrete

The Hard Concrete / Blue series is designed for grinding hard concrete surfaces.

Single Bar

Available Sizes

Item – Grit # / Segment Spec (L x T x H mm)

• SHC 18 – 18 / 20 / 40 x 10 x 10 mm

• SHC 25 – 25 / 30 / 40 x 10 x 10 mm

• SHC 30 – 30 / 40 / 40 x 10 x 10 mm

• SHC 60 – 60 / 80 / 40 x 10 x 10 mm

• SHC 120 – 120 / 150 / 40 x 10 x 10 mm

Single Round

Available Sizes

Item – Grit # / Segment Spec (D x T mm)

• SRHC 18 – 18 / 20 / D20 x 10 mm

• SRHC 25 – 25 / 30 / D20 x 10 mm

• SRHC 30 – 30 / 40 / D20 x 10 mm

• SRHC 60 – 60 / 80 / D20 x 10 mm

• SRHC 120 – 120 / 150 / D20 x 10 mm

Medium Concrete / Red

Single segment / For medium concrete

The Medium Concrete / Red series is designed for grinding medium-hardness concrete.

Single Bar

Available Sizes

Item – Grit # / Segment Spec (L x T x H mm)

• SMC 18 – 18 / 20 / 40 x 10 x 10 mm

• SMC 25 – 25 / 30 / 40 x 10 x 10 mm

• SMC 30 – 30 / 40 / 40 x 10 x 10 mm

• SMC 60 – 60 / 80 / 40 x 10 x 10 mm

• SMC 120 – 120 / 150 / 40 x 10 x 10 mm

Single Round

Available Sizes

Item – Grit # / Segment Spec (D x T mm)

• SRMC 18 – 18 / 20 / D20 x 10 mm

• SRMC 25 – 25 / 30 / D20 x 10 mm

• SRMC 30 – 30 / 40 / D20 x 10 mm

• SRMC 60 – 60 / 80 / D20 x 10 mm

• SRMC 120 – 120 / 150 / D20 x 10 mm

Technical Notes

• Product Type: Diamond Segment Shoes / Single Segment

• Equipment: FG (Floor Grinder)

• Segment Options: Single Bar / Single Round

• Standard Grit Ranges: 18/20, 25/30, 30/40, 60/80, 120/150

• Single Bar Segment: 40 x 10 x 10 mm

• Single Round Segment: D20 x 10 mm

• Ultra Hard Concrete: Yellow

• Very Hard Concrete: Gold

• Hard Concrete: Blue

• Medium Concrete: Red

Typical Applications

ultra-hard concrete grinding, very hard concrete grinding, hard concrete grinding, medium concrete grinding, concrete floor grinding, industrial floor grinding, surface preparation, metal bond grinding, single-bar grinding, single-round grinding, concrete floor preparation

Q1. What is the difference between Single Bar and Single Round diamond shoes?

A. Single Bar models use one 40 x 10 x 10 mm bar segment, while Single Round models use one D20 x 10 mm round segment.

Q2. What grit ranges are available for DIATOP Single-Segment Diamond Shoes?

A. The catalog lists 18/20, 25/30, 30/40, 60/80, and 120/150 grit ranges.

Q3. How are the different concrete hardness versions identified?

A. The catalog uses a color-coded system: Yellow for Ultra Hard Concrete, Gold for Very Hard Concrete, Blue for Hard Concrete, and Red for Medium Concrete.

For diamond grinding shoe selection, bond selection, concrete hardness matching, grit recommendations, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
