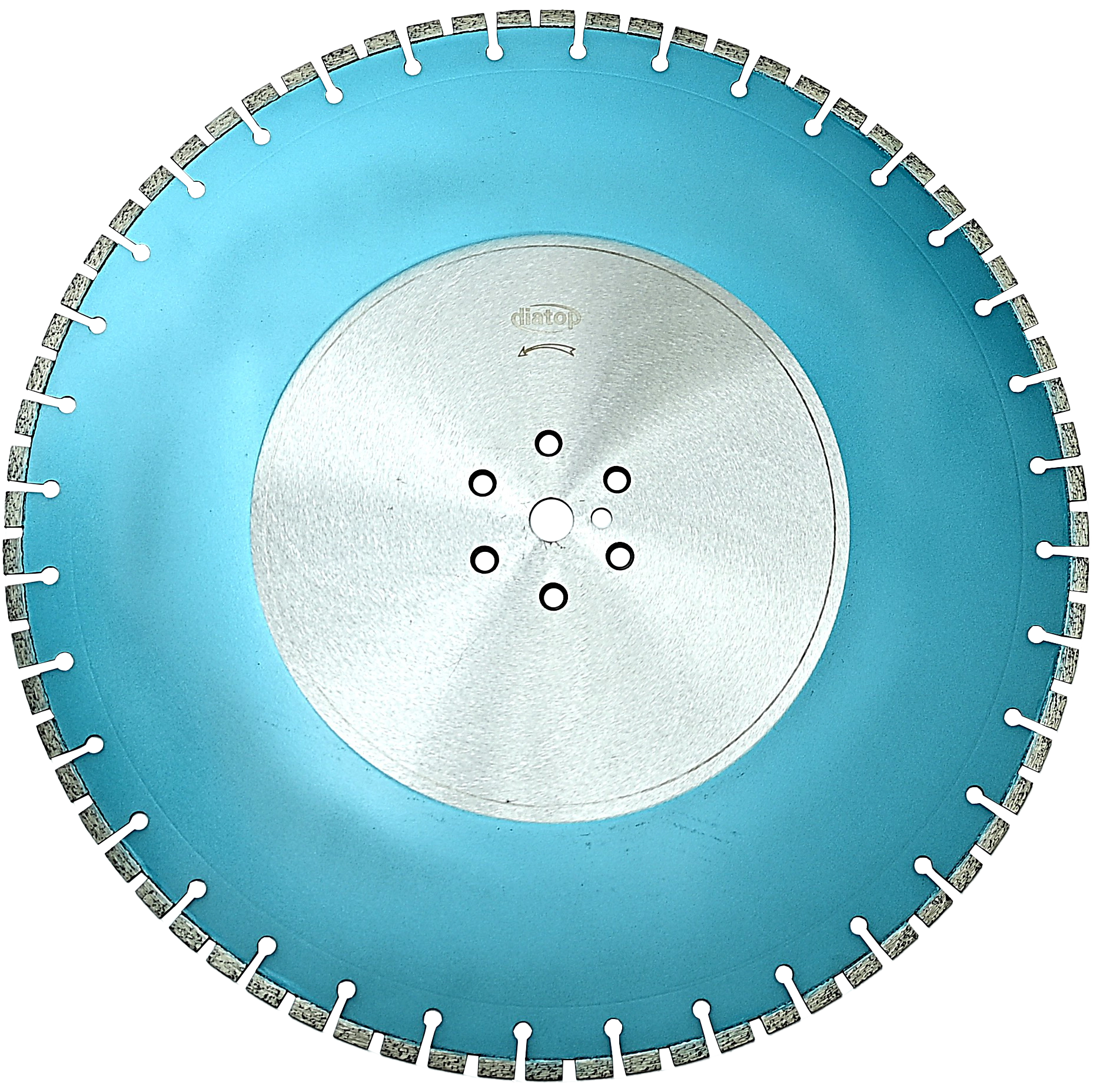

Wet Wall Saw Blades

Patterned diamond segments / Wet / Laser welded / For wall saw

Professional Wet Wall Saw Blades with Patterned Diamond Segments

Wall sawing requires a blade capable of maintaining fast, accurate, and stable cutting performance through demanding concrete wall applications.

DIATOP XPRESS Wall Saw Blades are designed for hydraulic-mounted wall saws and use patterned diamond segments for fast and accurate cutting on walls.

Slope segments support easier wall cutting, while the sandwich segment design helps provide even cutting and longer blade life.

Strict welding inspection is performed on both sides of the segments to help prevent segment loss, and multiple bond options are available for different cutting conditions.

Type of Equipment: W (Wall Saw)

Key Features

• Designed for hydraulic-mounted wall saws.
• Fast and accurate cutting on walls with patterned diamond segments.
• Slope segments for easy cutting during wall sawing.
• Sandwich segment design for even cutting and longer blade life.
• Strict welding test on both sides of the segments to help prevent segment loss.
• Available bonds: Hard, Medium, Soft.

Available Sizes

Item – D x T inch / D x T mm / Segment Height inch / Segment Height mm

• WSX 503612 – 20 x .141 inch / 500 x 3.6 mm / .472 inch / 12 mm
• WSX 603612 – 24 x .141 inch / 600 x 3.6 mm / .472 inch / 12 mm
• WSX 663612 – 26 x .141 inch / 660 x 3.6 mm / .472 inch / 12 mm
• WSX 753812 – 30 x .150 inch / 750 x 3.8 mm / .472 inch / 12 mm
• WSX 804812 – 32 x .187 inch / 800 x 4.8 mm / .472 inch / 12 mm
• WSX 806412 – 32 x .250 inch / 800 x 6.4 mm / .472 inch / 12 mm
• WSX 904812 – 36 x .187 inch / 900 x 4.8 mm / .472 inch / 12 mm

* Bore hole: 25.4 mm

* Pin holes are available upon request

Bond Selection

• Hard
• Medium
• Soft

Typical Applications

wall sawing, wet wall saw cutting, concrete wall cutting, reinforced concrete wall cutting, hydraulic wall saw cutting, structural concrete cutting, vertical concrete cutting, wall opening cutting, doorway opening cutting, window opening cutting, patterned diamond wall saw blade cutting

Q1. What wall saw blade is recommended for fast and accurate concrete wall cutting?

A. DIATOP XPRESS Wall Saw Blades are designed for hydraulic-mounted wall saws and use patterned diamond segments for fast and accurate wall cutting. Slope segments support easier sawing, while the sandwich segment design helps provide even cutting and longer blade life.

Q2. Can XPRESS Wall Saw Blades be used for wet concrete wall cutting?

A. Yes. XPRESS Wall Saw Blades are designed for wet wall saw applications using hydraulic-mounted wall saws and are suitable for concrete wall cutting and related structural cutting work.

Q3. What features help improve blade life and segment retention on XPRESS Wall Saw Blades?

A. The sandwich segment design helps provide even cutting and longer blade life, while both sides of the segments undergo strict welding inspection to help prevent segment loss. Hard, Medium, and Soft bond options are also available for different cutting conditions.

For blade selection guidelines, bond selection, recommended operating conditions, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
