EP Vanity Single / EP Vanity Single with Flange

Dry / Electroplated diamond blade / Single-sided / Standard and flange versions available

Professional Single-Sided Electroplated Blades for Dry Stone Cutting

Stone fabrication applications often require a compact electroplated blade for controlled dry cutting across vanity and general stone-processing work.

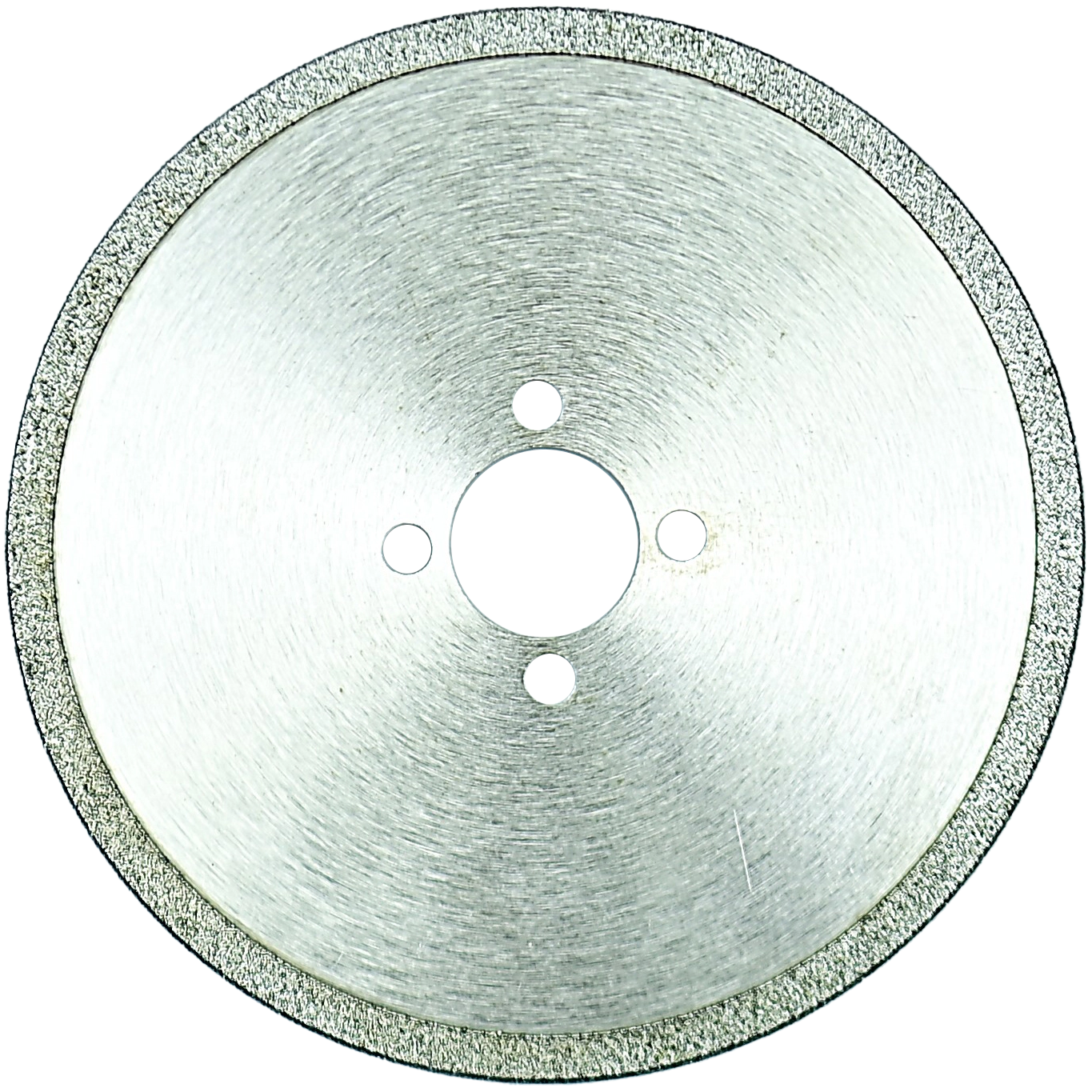

DIATOP EP Vanity Single is a single-sided electroplated diamond blade designed for dry cutting applications.

The range is available in both standard arbor and flange-mounted configurations, allowing selection according to the required machine setup.

Both versions are available in diameters from 4 1/2 inches to 9 inches.

Type of Equipment: M / AG (Tile Saw / Angle Grinder)

Key Features

• Single-sided electroplated diamond blade.

• Designed for dry cutting.

• Standard arbor version available.

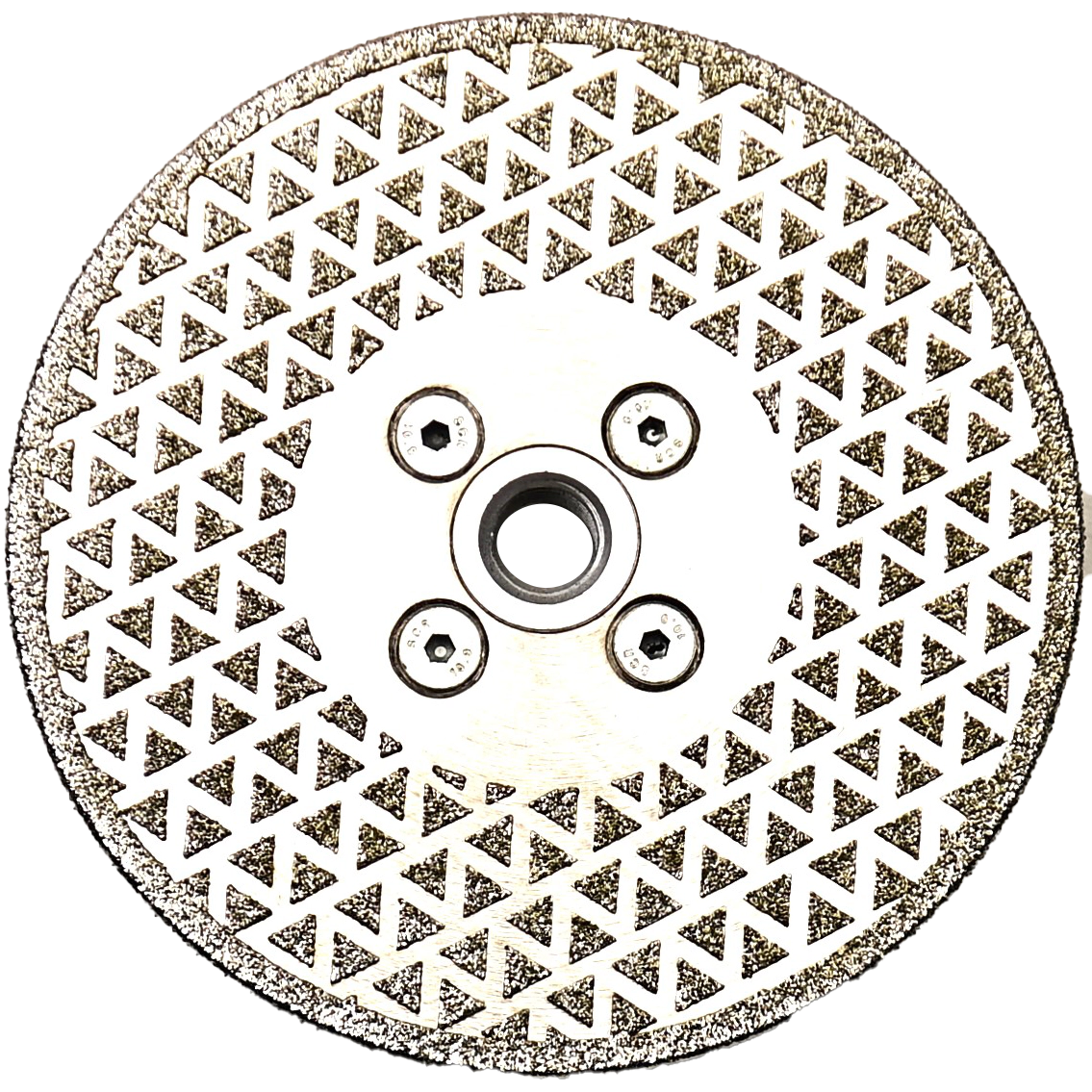

• Flange-mounted version available.

• Flange version available with M14 or 5/8"-11 thread.

• Available in multiple diameters.

Available Sizes – EP Vanity Single

Item – Diameter inch / Diameter mm

• EVS 115 – 4 1/2 inch / 115 mm

• EVS 125 – 5 inch / 125 mm

• EVS 180 – 7 inch / 180 mm

• EVS 230 – 9 inch / 230 mm

* Arbor: 22.23 mm (7/8")

Available Sizes – EP Vanity Single with Flange

Item – Diameter inch / Diameter mm

• EVSF 115 – 4 1/2 inch / 115 mm

• EVSF 125 – 5 inch / 125 mm

• EVSF 180 – 7 inch / 180 mm

• EVSF 230 – 9 inch / 230 mm

* Thread: M14, 5/8"-11

Technical Notes

• Blade Type: Electroplated diamond blade

• Single-sided

• Dry use

• Standard version: EVS

• Standard arbor: 22.23 mm (7/8")

• Flange-mounted version: EVSF

• Flange thread options: M14, 5/8"-11

Typical Applications

vanity cutting, dry stone cutting, electroplated diamond cutting, stone trimming, vanity fabrication, flange-mounted diamond blade, tile saw cutting, angle grinder cutting, stone fabrication

Q1. What is the difference between EP Vanity Single and EP Vanity Single with Flange?

A. EP Vanity Single uses a standard 22.23 mm (7/8") arbor, while EP Vanity Single with Flange is supplied in a flange-mounted configuration with M14 or 5/8"-11 thread.

Q2. What sizes are available for EP Vanity Single?

A. Both the standard and flange-mounted versions are available in 4 1/2, 5, 7, and 9 inch diameters.

Q3. Is EP Vanity Single designed for dry cutting?

A. Yes. Both EP Vanity Single and EP Vanity Single with Flange are specified for dry use.

For electroplated blade selection guidelines, arbor and thread compatibility, dry-cutting operating conditions, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
