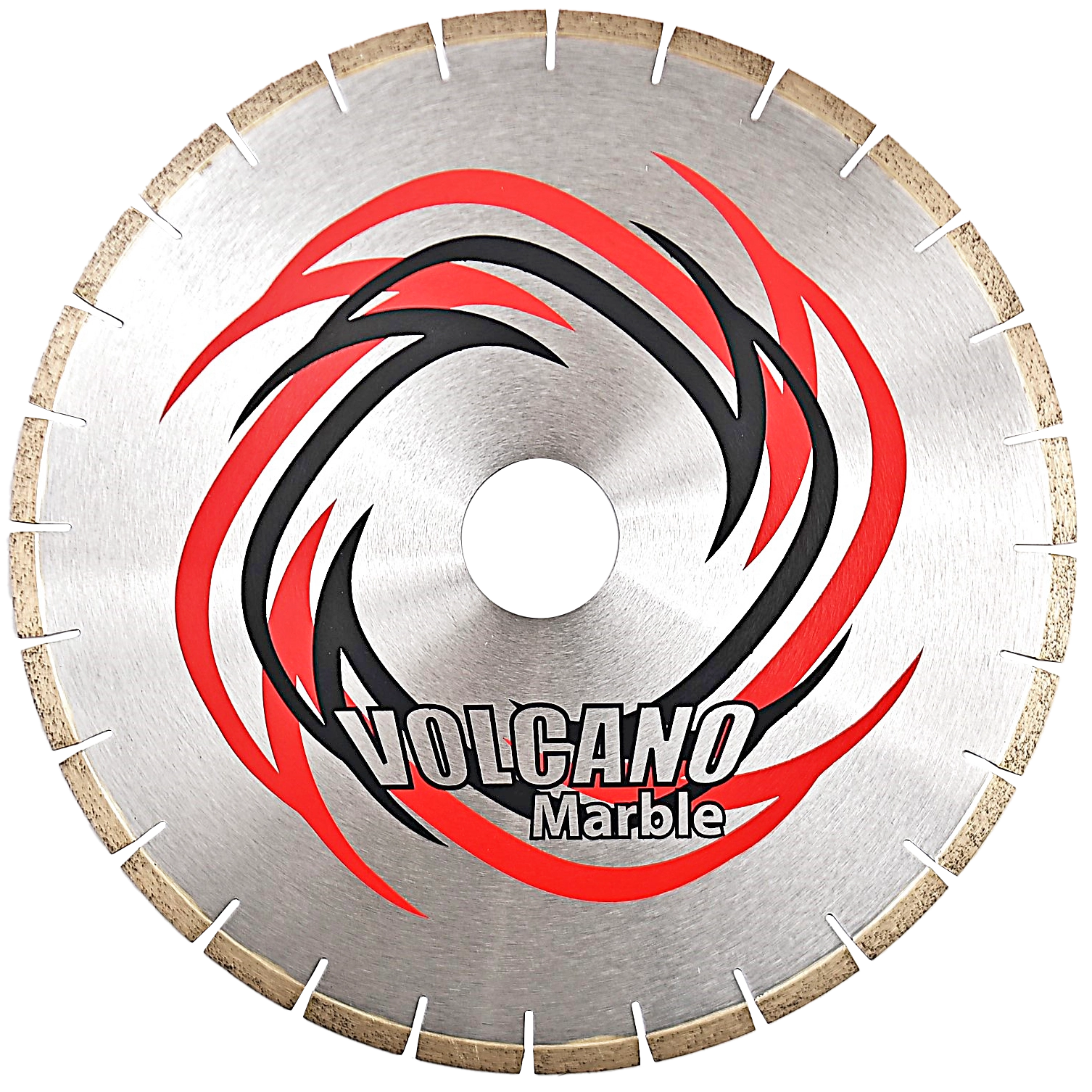

VOLCANO Marble Blades

Silver brazed / Silent / Wet / For marble and travertine

Professional Silent Bridge Saw Blade for Marble and Travertine

Marble and travertine fabrication requires a blade capable of producing fine, clean cuts while minimizing chipping and noise during operation.

VOLCANO Marble Blade is designed for professional stone fabricators and is suitable for bridge saw applications.

The blade provides fine cutting across different types of marble and travertine. A sandwich laminated core helps reduce noise during cutting.

A narrow slot design supports chip-free cutting, making the blade suitable for clean stone fabrication work.

Type of Equipment: BS / M / AG (Bridge Saw / Tile Saw / Angle Grinder)

Key Features

• Highly welcomed by stone fabricators.

• Suitable for bridge saw applications.

• Fine cutting for different marbles and travertine.

• Noise reduction with sandwich laminated core.

• Chip-free cutting with narrow slot design.

• Silent blade.

• Silver brazed.

• Wet cutting.

Available Sizes

Item – D x T inch / D x T mm / Segment Height mm

• NSM 303210 – 12 x .125 inch / 300 x 3.2 mm / 10 mm

• NSM 353210 – 14 x .125 inch / 350 x 3.2 mm / 10 mm

• NSM 403210 – 16 x .125 inch / 400 x 3.2 mm / 10 mm

• NSM 453610 – 18 x .141 inch / 450 x 3.6 mm / 10 mm

• NSM 504010 – 20 x .157 inch / 500 x 4.0 mm / 10 mm

• NSM 604210 – 24 x .165 inch / 600 x 4.2 mm / 10 mm

* Standard arbor: 60/50 mm

Operation Parameters

Diameter (Inch / mm) / Recommended RPM / Feed rate (Feet / M)

• 12 / 300 / 2000–2300 / 5–9 / 1.5–2.7

• 14 / 350 / 1800–2200 / 5–9 / 1.5–2.7

• 16 / 400 / 1700–2000 / 5–9 / 1.5–2.7

• 18 / 450 / 1600–1700 / 5–9 / 1.5–2.7

• 20 / 500 / 1350–1550 / 5–9 / 1.5–2.7

Technical Notes

• Segment Height: 10 mm

• Core Type: Sandwich laminated core

• Narrow slot design

• Standard arbor: 60/50 mm

• Silent blade

• Silver brazed

• Wet cutting

• Suitable materials: Marble, travertine

Typical Applications

marble cutting, marble slab cutting, travertine cutting, bridge saw marble cutting, chip-free marble cutting, fine stone cutting, countertop fabrication, marble fabrication, travertine fabrication, slab processing, architectural stone fabrication, stone workshop manufacturing

Q1. What bridge saw blade is recommended for marble and travertine?

A. VOLCANO Marble Blade is designed for fine cutting of different marbles and travertine and is suitable for professional bridge saw applications.

Q2. How does VOLCANO Marble Blade help reduce chipping and noise?

A. The blade uses a narrow slot design for chip-free cutting and a sandwich laminated core to reduce noise during operation.

Q3. What operating parameters are recommended for VOLCANO Marble Blade?

A. Recommended RPM ranges from 2000–2300 RPM for the 12-inch blade to 1350–1550 RPM for the 20-inch blade. The recommended feed rate is 5–9 ft/min or 1.5–2.7 m/min.

For recommended RPM settings, feed rates, wet-cutting operating parameters, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
