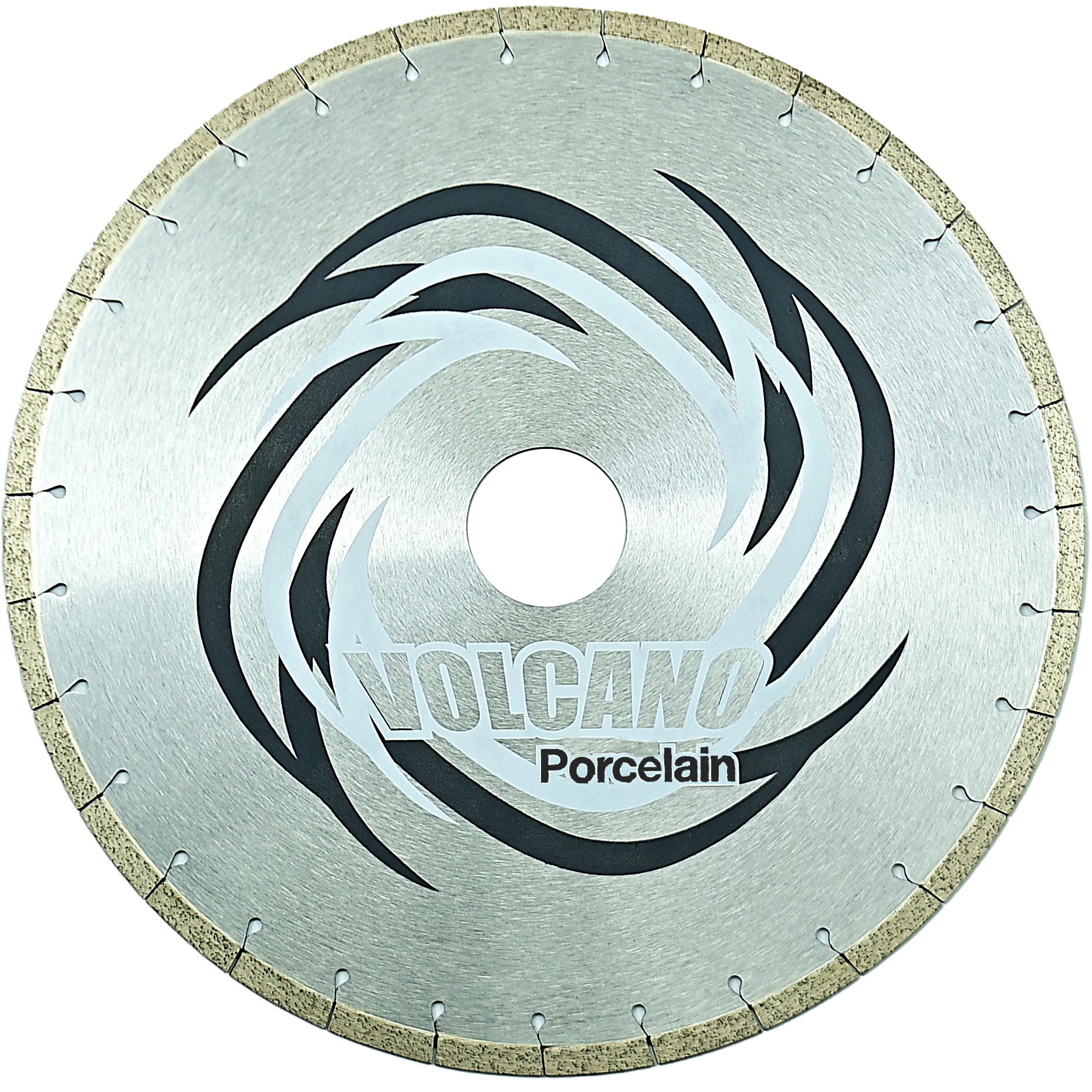

VOLCANO Porcelain Blades

Silent / Silver brazed / Wet / For large-format ceramic slabs and ultra-compact materials

Professional Silent Bridge Saw Blade for Porcelain and Large-Format Ceramic Slabs

Large-format ceramic slabs and ultra-compact materials require a blade capable of maintaining straight cutting performance while minimizing edge damage during fabrication.

VOLCANO Porcelain Blade is designed for cutting large-format ceramic slabs and ultra-compact materials.

The blade uses a DIATOP original very special soft bond and is intended for straight cutting of Laminam, Neolith, Techlam, Kenlite, Kedra, Maxfine, and porcelain gres.

A silent laminated sandwich steel core helps reduce noise during cutting.

Type of Equipment: BS (Bridge Saw)

Key Features

• Suitable for cutting large-format ceramic slabs with ultra-compact materials.

• DIATOP original very special soft bond.

• Ideal for straight cutting of Laminam, Neolith, Techlam, Kenlite, Kedra, Maxfine, and porcelain gres.

• Silent laminated sandwich steel core.

• Silent blade.

• Silver brazed.

• Wet cutting.

Available Sizes

Item – D x T inch / D x T mm / Segment Height mm

• NSP 352610 – 14 x .100 inch / 350 x 2.6 mm / 10 mm

• NSP 402810 – 16 x .110 inch / 400 x 2.8 mm / 10 mm

* Arbor: 60/50 mm

Operation Parameters

Diameter (Inch / mm) / Recommended RPM / Feed rate/min (Feet / M)

• 14 / 350 / 1650–1800 / 3–8 / 1–1.8

• 16 / 400 / 1450–1600 / 3–8 / 1–1.8

Technical Notes

• Bond: DIATOP original very special soft bond

• Segment Height: 10 mm

• Core Type: Silent laminated sandwich steel core

• Arbor: 60/50 mm

• Silent blade

• Silver brazed

• Wet cutting

• Suitable materials: Laminam, Neolith, Techlam, Kenlite, Kedra, Maxfine, porcelain gres

Typical Applications

porcelain slab cutting, large-format ceramic slab cutting, Laminam cutting, Neolith cutting, Techlam cutting, Kenlite cutting, Kedra cutting, Maxfine cutting, porcelain gres cutting, ultra-compact material cutting, bridge saw cutting, straight ceramic cutting, countertop fabrication, ceramic slab fabrication

Q1. What bridge saw blade is recommended for large-format porcelain and ceramic slabs?

A. VOLCANO Porcelain Blade is designed for large-format ceramic slabs and ultra-compact materials. It uses a DIATOP original very special soft bond and is intended for straight cutting applications.

Q2. What materials can VOLCANO Porcelain Blade cut?

A. The catalog specifies Laminam, Neolith, Techlam, Kenlite, Kedra, Maxfine, and porcelain gres.

Q3. What operating parameters are recommended for VOLCANO Porcelain Blade?

A. The 14-inch blade is recommended at 1650–1800 RPM, while the 16-inch blade is recommended at 1450–1600 RPM. The recommended feed rate for both sizes is 3–8 ft/min or 1–1.8 m/min.

For recommended RPM settings, feed rates, wet-cutting operating parameters, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
