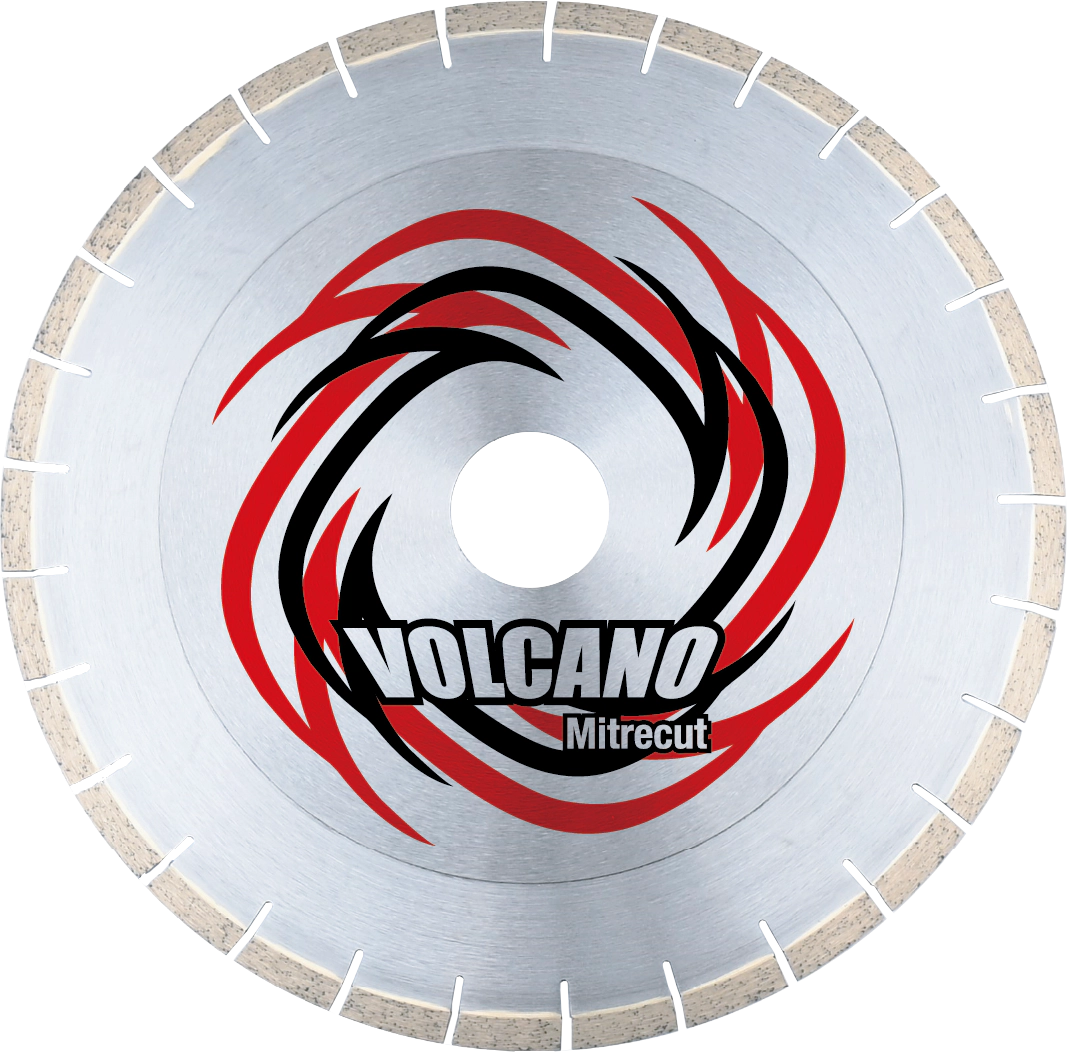

VOLCANO Miter Cut Blades for Quartzite

Silent / Silver brazed / Reinforced core / Wet / For quartzite miter cutting

Professional Miter Cut Bridge Saw Blades for Quartzite

Miter cutting very hard quartzite requires a blade capable of maintaining stability while handling the additional pressure created during angled cutting.

VOLCANO Miter Cut Blades for Quartzite are designed specifically for miter cutting applications on quartzite.

The blades use an extremely soft bond for very hard quartzite, while the reinforced steel plate is designed to cope with the pressure placed on the segments when cutting angles.

Unique turbo segments are used to support smooth cutting during professional quartzite fabrication.

Type of Equipment: BS (Bridge Saw)

Key Features

• Designed for miter cutting on quartzite.

• Extremely soft bond for very hard quartzite.

• Reinforced steel plate designed to cope with pressure placed on the segments during angle cutting.

• Unique turbo segments for smooth cutting.

• Silent blade.

• Reinforced core.

• Silver brazed.

• Wet cutting.

Available Sizes

Item – D x T inch / D x T mm / Segment Height mm / Arbor

• MCQ 353212 – 14 x .125 inch / 350 x 3.2 mm / 12 mm / Arbor: 60/50 mm

• MCQ 403212 – 16 x .125 inch / 400 x 3.2 mm / 12 mm / Arbor: 60/50 mm

Technical Notes

• Bond: Extremely soft

• Segment Type: Unique turbo segment

• Segment Height: 12 mm

• Arbor: 60/50 mm

• Core Type: Reinforced steel plate

• Silent blade

• Silver brazed

• Wet cutting

Operation Parameters

• While entering and exiting a cut, reduce the feed speed by 40–50%.

• When cutting at 45°, reduce the feed speed by 40%.

Typical Applications

quartzite miter cutting, very hard quartzite cutting, 45-degree quartzite cutting, quartzite angle cutting, bridge saw miter cutting, quartzite countertop fabrication, mitered countertop edge fabrication, stone fabrication, quartzite slab processing, architectural stone fabrication

Q1. What bridge saw blade is recommended for miter cutting very hard quartzite?

A. VOLCANO Miter Cut Blades for Quartzite are designed specifically for miter cutting very hard quartzite. They use an extremely soft bond, a reinforced steel plate core, and unique turbo segments for smooth cutting.

Q2. Why does the VOLCANO Miter Cut Blade for Quartzite use a reinforced core?

A. The reinforced steel plate is designed to cope with the pressure placed on the segments when cutting angles.

Q3. What feed-speed adjustments are recommended when miter cutting quartzite?

A. The catalog recommends reducing feed speed by 40–50% while entering and exiting a cut. When cutting at 45°, feed speed should be reduced by 40%.

For miter blade selection guidelines, feed-speed recommendations, wet-cutting operating parameters, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
