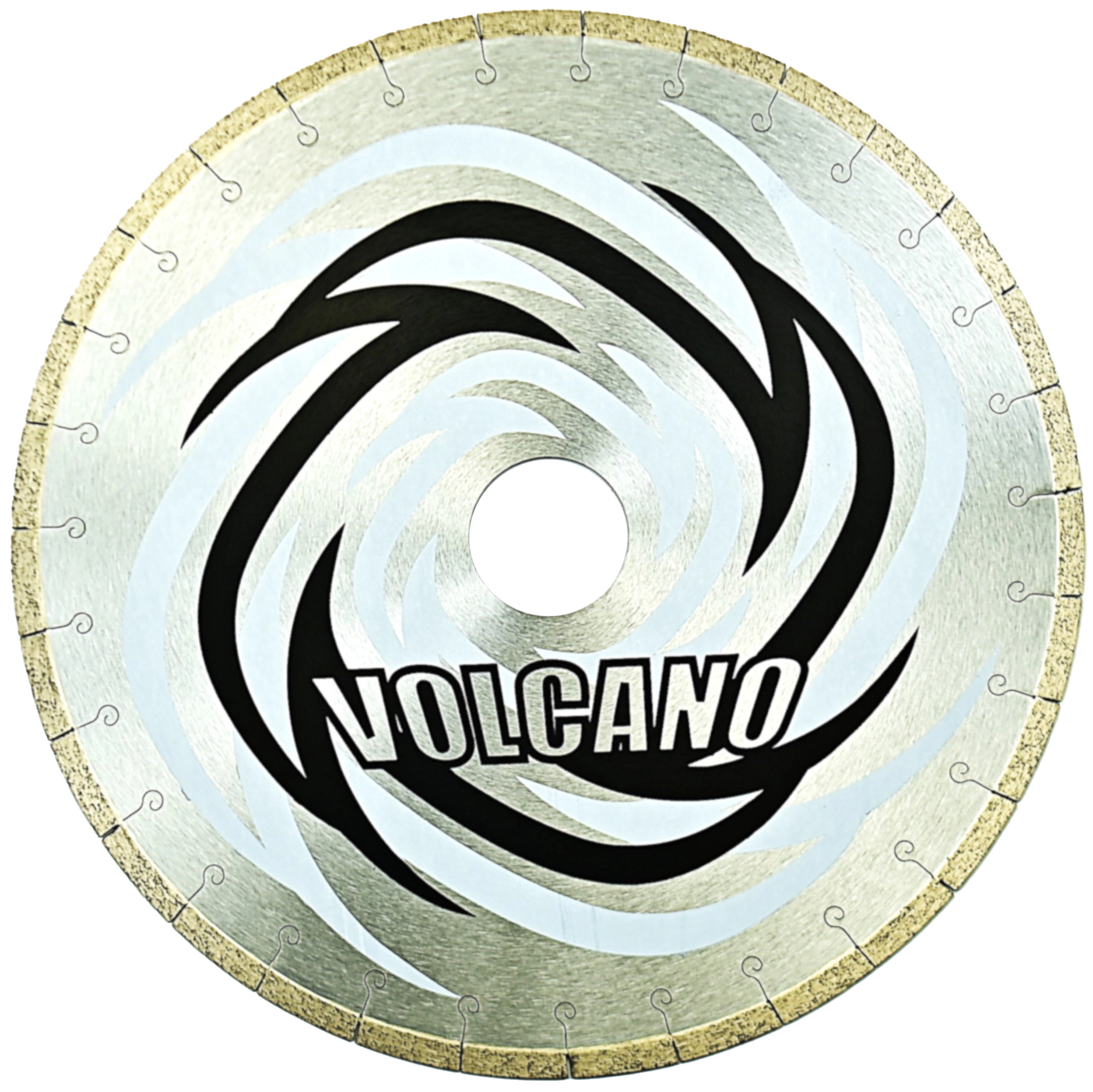

VOLCANO Ultra Compact Ceramic Blades

Silent / Wet / Silver brazed / For Dekton, Neolith, and Lapitec

Professional Bridge Saw Blade for Ultra-Compact Ceramic Surfaces

Ultra-compact ceramic materials require a blade capable of maintaining clean edge quality while minimizing chipping on sharp edges.

VOLCANO Ultra Compact Ceramic Blade is engineered specifically for cutting ultra-compact surfaces such as Dekton, Neolith, and Lapitec.

The blade uses a very special DIATOP original soft bond and a very narrow slot design to minimize chipping during cutting.

It is designed to provide excellent cost performance for professional fabrication of ultra-compact ceramic slabs.

Type of Equipment: BS (Bridge Saw)

Key Features

• Very special DIATOP original soft bond.

• Suitable for Dekton, Neolith, and Lapitec.

• Engineered to cut ultra-compact surfaces.

• No need to cut edges.

• Very narrow slot design minimizes chipping on sharp edges.

• Excellent cost performance.

• Silent blade.

• Wet cutting.

• Silver brazed.

Available Sizes

Item – D x T inch / D x T mm / Segment Height mm / Arbor

• NDKQ 352810 – 14 x .110 inch / 350 x 2.8 mm / 10 mm / Arbor: 60/50 mm

• NDKQ 403010 – 16 x .118 inch / 400 x 3.0 mm / 10 mm / Arbor: 60/50 mm

• NDKQ 453210 – 18 x .125 inch / 450 x 3.2 mm / 10 mm / Arbor: 60/50 mm

* Arbor 50 mm is available upon request.

Operation Parameters

Diameter (Inch / mm) / Recommended RPM / Feed rate/min (Feet / M)

• 14 / 350 / 1650–1800 / 3–8 / 1–2.4

• 16 / 400 / 1450–1600 / 3–8 / 1–2.4

• 18 / 450 / 1300–1400 / 3–8 / 1–2.4

Technical Notes

• Bond: Very special DIATOP original soft bond

• Segment Height: 10 mm

• Arbor: 60/50 mm

• 50 mm arbor available upon request

• Very narrow slot design

• Silent blade

• Wet cutting

• Silver brazed

• Suitable materials: Dekton, Neolith, Lapitec

Typical Applications

Dekton cutting, Neolith cutting, Lapitec cutting, ultra-compact ceramic cutting, ultra-compact surface fabrication, bridge saw cutting, ceramic slab cutting, countertop fabrication, chip-minimized edge cutting, stone and ceramic fabrication

Q1. What bridge saw blade is recommended for Dekton, Neolith, and Lapitec?

A. VOLCANO Ultra Compact Ceramic Blade is specifically designed for ultra-compact surfaces such as Dekton, Neolith, and Lapitec. It uses a special soft bond and a very narrow slot design to minimize chipping on sharp edges.

Q2. How does VOLCANO Ultra Compact Ceramic Blade help reduce chipping?

A. The catalog specifies a very narrow slot design that minimizes chipping on sharp edges during cutting.

Q3. What operating parameters are recommended for VOLCANO Ultra Compact Ceramic Blade?

A. Recommended RPM ranges from 1650–1800 RPM for the 14-inch blade to 1300–1400 RPM for the 18-inch blade, with a feed rate of 3–8 ft/min or 1–2.4 m/min.

For recommended RPM settings, feed rates, wet-cutting operating parameters, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
