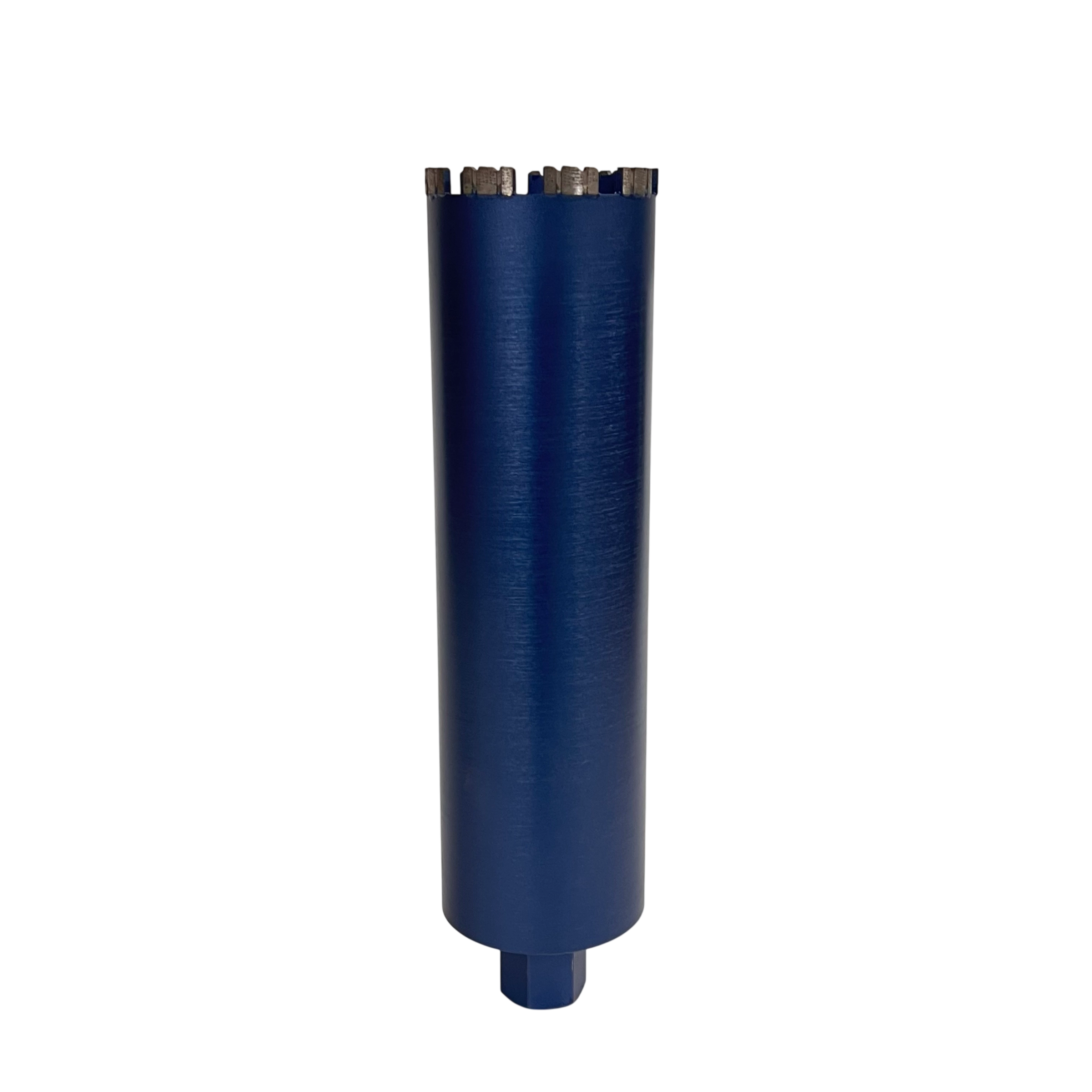

Xpress Turbo Core Drill Bits

Patterned diamond segments / Wet drilling / For reinforced concrete and very hard concrete / 14" standard barrel length

Professional Wet Core Drill Bits for Reinforced and Very Hard Concrete

Wet core drilling requires a bit capable of maintaining drilling speed, segment durability, and stable performance in reinforced and very hard concrete.

DIATOP XPRESS CORE DRILL BITS are high-performance diamond core drill bits designed for fast drilling and long service life.

The new patterned diamond segments are designed to drill faster and provide longer life, while supporting high-efficiency drilling in reinforced concrete and very hard concrete.

A 14" barrel length is standard, with other barrel lengths available upon request.

Type of Equipment: D (Core Drills)

Key Features

• High-performance diamond core drill bits and segments for fast drilling and long life.

• New patterned diamond segments provide faster drilling and longer life.

• High-efficiency drilling in reinforced concrete and very hard concrete.

• 14" barrel length is standard.

• Wet drilling.

Available Sizes

Item – Diameter inch / Diameter mm / Segment L x T x H mm / No. of Segments

• XCDB-051 – 2 inch / 51 mm / 24 x 3.0 x 10 mm / 5

• XCDB-057 – 2 1/4 inch / 57 mm / 24 x 3.0 x 10 mm / 6

• XCDB-060 – 2 3/8 inch / 60 mm / 24 x 3.0 x 10 mm / 6

• XCDB-064 – 2 1/2 inch / 64 mm / 24 x 3.5 x 10 mm / 6

• XCDB-070 – 2 3/4 inch / 70 mm / 24 x 3.5 x 10 mm / 7

• XCDB-076 – 3 inch / 76 mm / 24 x 3.5 x 10 mm / 7

• XCDB-083 – 3 1/4 inch / 83 mm / 24 x 3.5 x 10 mm / 7

• XCDB-089 – 3 1/2 inch / 89 mm / 24 x 3.5 x 10 mm / 8

• XCDB-102 – 4 inch / 102 mm / 24 x 3.5 x 10 mm / 9

• XCDB-108 – 4 1/4 inch / 108 mm / 24 x 3.5 x 10 mm / 9

• XCDB-114 – 4 1/2 inch / 114 mm / 24 x 3.5 x 10 mm / 10

• XCDB-117 – 4 5/8 inch / 117 mm / 24 x 3.5 x 10 mm / 10

• XCDB-127 – 5 inch / 127 mm / 24 x 3.5 x 10 mm / 11

• XCDB-140 – 5 1/2 inch / 140 mm / 24 x 4.0 x 10 mm / 12

• XCDB-152 – 6 inch / 152 mm / 24 x 4.0 x 10 mm / 13

• XCDB-159 – 6 1/4 inch / 159 mm / 24 x 4.0 x 10 mm / 13

• XCDB-178 – 7 inch / 178 mm / 24 x 4.0 x 10 mm / 14

• XCDB-203 – 8 inch / 203 mm / 24 x 4.0 x 10 mm / 16

• XCDB-229 – 9 inch / 229 mm / 24 x 4.0 x 10 mm / 17

• XCDB-254 – 10 inch / 254 mm / 24 x 4.0 x 10 mm / 18

• XCDB-305 – 12 inch / 305 mm / 24 x 4.5 x 10 mm / 20

• XCDB-356 – 14 inch / 356 mm / 24 x 4.5 x 10 mm / 21

• XCDB-406 – 16 inch / 406 mm / 24 x 5.0 x 10 mm / 22

* Other barrel length is upon request.

Bond Selection

Hardness and Reinforcing / Bond

• Very hard aggregate with heavy reinforcing – SC

• Hard aggregate with light reinforcing – MC

• Asphalt, Block – HC

Technical Notes

• Thread: 1 1/4-7

• Standard barrel length: 14"

• Other barrel lengths available upon request.

• Wet drilling.

• Patterned diamond segments.

Typical Applications

reinforced concrete core drilling, very hard concrete drilling, wet core drilling, concrete hole drilling, heavy reinforced concrete drilling, hard aggregate concrete drilling, light reinforced concrete drilling, asphalt core drilling, block core drilling, construction core drilling

Q1. What core drill bit is recommended for reinforced and very hard concrete?

A. DIATOP XPRESS CORE DRILL BITS are designed for wet drilling in reinforced concrete and very hard concrete. They use patterned diamond segments for faster drilling and longer life.

Q2. What bond should be selected for different drilling conditions?

A. The catalog specifies SC for very hard aggregate with heavy reinforcing, MC for hard aggregate with light reinforcing, and HC for asphalt and block.

Q3. What sizes and thread are available for XPRESS CORE DRILL BITS?

A. XPRESS CORE DRILL BITS are available from 2 inch (51 mm) to 16 inch (406 mm) diameter, with segment specifications and segment counts varying by size. The standard thread is 1 1/4-7, and the standard barrel length is 14".

For core drill bit selection guidelines, bond selection, wet drilling conditions, thread compatibility, operating parameters, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
