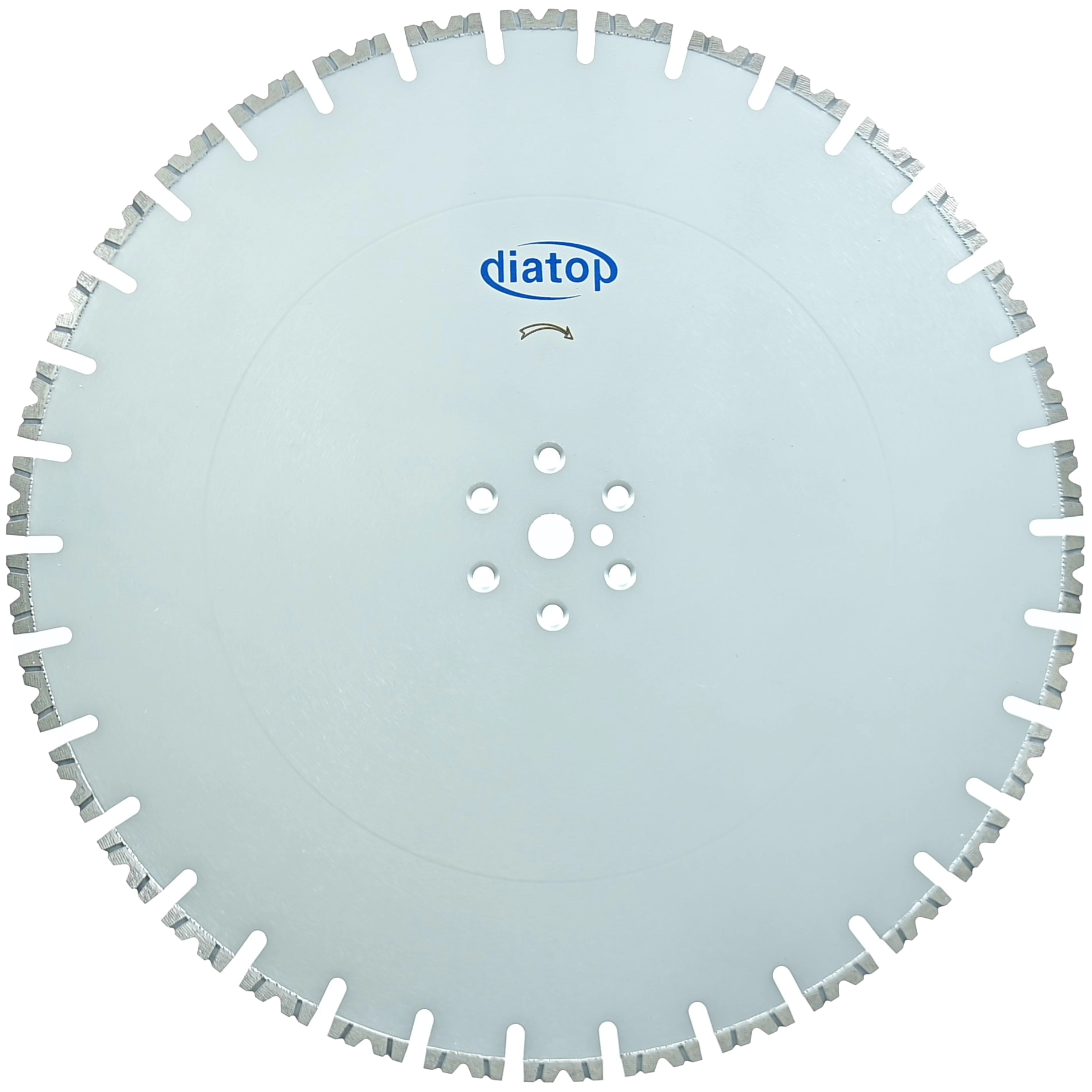

XPRESS Wall Saw Blades

Patterned diamond segments / Wet / Laser welded / For wall saw

Professional Wet Wall Saw Blades for Hydraulic Wall Saws

Wall sawing requires a blade that can maintain cutting accuracy, segment stability, and smooth performance during demanding structural concrete cutting operations.

XPRESS Wall Saw Blades are designed for hydraulic-mounted wall saws and use patterned diamond segments to provide fast and accurate cutting on walls.

The blades feature slope segments for easy cutting during wall sawing and a sandwich segment design for even cutting and longer blade life.

Both sides of the segments are strictly welding-tested to help prevent segment loss, and multiple bond options are available to match different cutting conditions.

Type of Equipment: W (Wall Saw)

Key Features

• Designed for hydraulic-mounted wall saws.
• Fast and accurate cutting on walls using patterned diamond segments.
• Slope segments for easy cutting during wall sawing.
• Sandwich segment design for even cutting and longer blade life.
• Strict welding test on both sides of the segments to help prevent segment loss.
• Available bonds: Hard, Medium, Soft.

Available Sizes

Item – D x T inch / D x T mm / Segment Height inch / Segment Height mm

• WSX 503612 – 20 x .141 inch / 500 x 3.6 mm / .472 inch / 12 mm
• WSX 603612 – 24 x .141 inch / 600 x 3.6 mm / .472 inch / 12 mm
• WSX 663612 – 26 x .141 inch / 660 x 3.6 mm / .472 inch / 12 mm
• WSX 753812 – 30 x .150 inch / 750 x 3.8 mm / .472 inch / 12 mm
• WSX 804812 – 32 x .187 inch / 800 x 4.8 mm / .472 inch / 12 mm
• WSX 806412 – 32 x .250 inch / 800 x 6.4 mm / .472 inch / 12 mm
• WSX 904812 – 36 x .187 inch / 900 x 4.8 mm / .472 inch / 12 mm

* Bore hole: 25.4 mm

* Pin holes are available upon request

Bond Selection

• Hard
• Medium
• Soft

Typical Applications

wall sawing, concrete wall cutting, reinforced concrete wall cutting, hydraulic wall saw cutting, structural concrete cutting, vertical concrete cutting, wall opening cutting, doorway opening cutting, window opening cutting, patterned diamond wall saw blade cutting, wet wall saw cutting

Q1. What diamond blade is recommended for hydraulic wall saws?

A. XPRESS Wall Saw Blades are designed for hydraulic-mounted wall saws and use patterned diamond segments for fast and accurate wall cutting. They are available in diameters from 20 to 36 inches.

Q2. Can XPRESS Wall Saw Blades be used for structural concrete wall cutting?

A. Yes. XPRESS Wall Saw Blades are designed for wall sawing applications and are suitable for concrete wall cutting and other structural wall-cutting operations using hydraulic wall saw equipment.

Q3. What features help improve cutting performance and blade life on XPRESS Wall Saw Blades?

A. Patterned diamond segments support fast and accurate cutting, while slope segments help provide easier wall cutting. The sandwich segment design promotes even cutting and longer blade life, and both sides of the segments are strictly welding-tested to help prevent segment loss.

For blade selection guidelines, bond selection, recommended operating conditions, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
