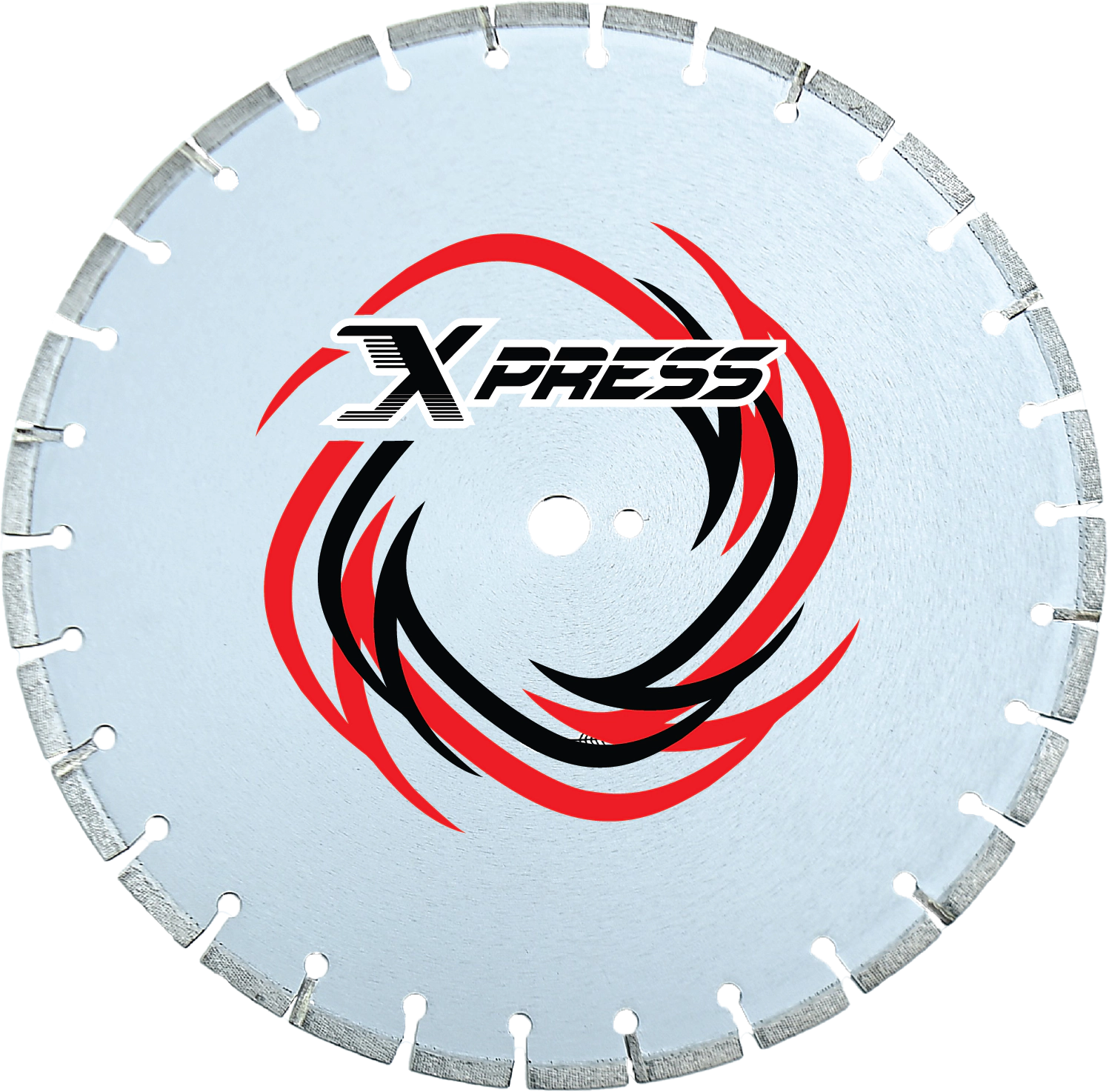

XPRESS ASPHALT Supreme Blades

Wet / Patterned diamond segments / Laser welded / Medium HP floor saws of 30 to 50 HP

Professional Wet Asphalt Blades for Medium-Horsepower Floor Saws

Asphalt cutting requires a blade capable of maintaining cutting speed and segment durability while working through abrasive paving materials.

XPRESS ASPHALT Supreme Blades are designed for medium-horsepower floor saws from 30 to 50 HP and are manufactured using patterned diamond technology for faster cutting speed and longer blade life compared with traditional random mixed diamonds.

The blades feature a sandwich segment design for even segment wear and a very hard bond containing a high volume of WC (Tungsten carbide) for high durability. Double-sided laser welding and welding-strength inspection using DIATOP’s special torque tester help provide secure segment retention during operation.

Slanted segments positioned at every three segments provide undercut protection. Multiple bond options are available according to aggregate hardness.

Type of Equipment: FM (Flat Saw – 25 HP to 40 HP)

Key Features

• DIATOP XPRESS ASPHALT Supreme Blades are manufactured using patterned diamond technology.
• Faster cutting speed and longer blade life compared with traditional random mixed diamonds.
• Sandwich segment design promotes even wear of the diamond segments.
• Very hard bond with a very high volume of WC (Tungsten carbide) for high durability.
• Laser welded on both sides to help prevent segment loss.
• Welding strength of the laser-welded segments is inspected on both sides using DIATOP’s special torque tester for safety.
• Slanted segments are positioned at every three segments to provide undercut protection.

Available Sizes

Item – D x T inch / D x T mm / Segment Height inch / Segment Height mm

• WAYXFS 403212 – 16 x .125 inch / 400 x 3.2 mm / .472 inch / 12 mm
• WAYXFS 453612 – 18 x .141 inch / 450 x 3.6 mm / .472 inch / 12 mm
• WAYXFS 503612 – 20 x .141 inch / 500 x 3.6 mm / .472 inch / 12 mm
• WAYXFS 504012 – 20 x .155 inch / 500 x 4.0 mm / .472 inch / 12 mm
• WAYXFS 604212 – 24 x .165 inch / 600 x 4.2 mm / .472 inch / 12 mm
• WAYXFS 604812 – 24 x .187 inch / 600 x 4.8 mm / .472 inch / 12 mm
• WAYXFS 654812 – 26 x .187 inch / 650 x 4.8 mm / .472 inch / 12 mm
• WAYXFS 704812 – 28 x .187 inch / 700 x 4.8 mm / .472 inch / 12 mm
• WAYXFS 754812 – 30 x .187 inch / 750 x 4.8 mm / .472 inch / 12 mm

* Standard arbor is 25.4 mm with pin hole. Other arbor hole is as requested.

Bond Selection

Aggregate Hardness / Bond

• Very hard – VS
• Medium Hard – MS
• Medium – MM
• Medium Soft – MH
• Soft – H

Typical Applications

asphalt cutting, wet asphalt cutting, asphalt pavement cutting, roadway asphalt cutting, highway asphalt cutting, asphalt floor saw cutting, medium-horsepower floor saw cutting, pavement cutting, road construction cutting, asphalt surface cutting, patterned diamond asphalt blade cutting

Q1. What diamond blade is recommended for asphalt cutting with medium-horsepower floor saws?

A. The XPRESS ASPHALT Supreme Blade is designed for medium-horsepower floor saws from 30 to 50 HP. It uses patterned diamond technology to provide faster cutting speed and longer blade life compared with traditional random mixed diamonds.

Q2. Can the XPRESS ASPHALT Supreme Blade be selected for different aggregate hardness levels?

A. Yes. The XPRESS ASPHALT Supreme Blade is available with bond options for Very hard, Medium Hard, Medium, Medium Soft, and Soft aggregate conditions, with the corresponding bond codes VS, MS, MM, MH, and H.

Q3. How does the XPRESS ASPHALT Supreme Blade improve durability and segment protection?

A. The blade uses a sandwich segment design for even segment wear and a very hard bond containing a high volume of WC (Tungsten carbide) for high durability. The segments are laser welded on both sides, welding strength is inspected with DIATOP’s special torque tester, and slanted segments positioned at every three segments provide undercut protection.

For blade selection guidelines, bond selection, recommended operating conditions, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
