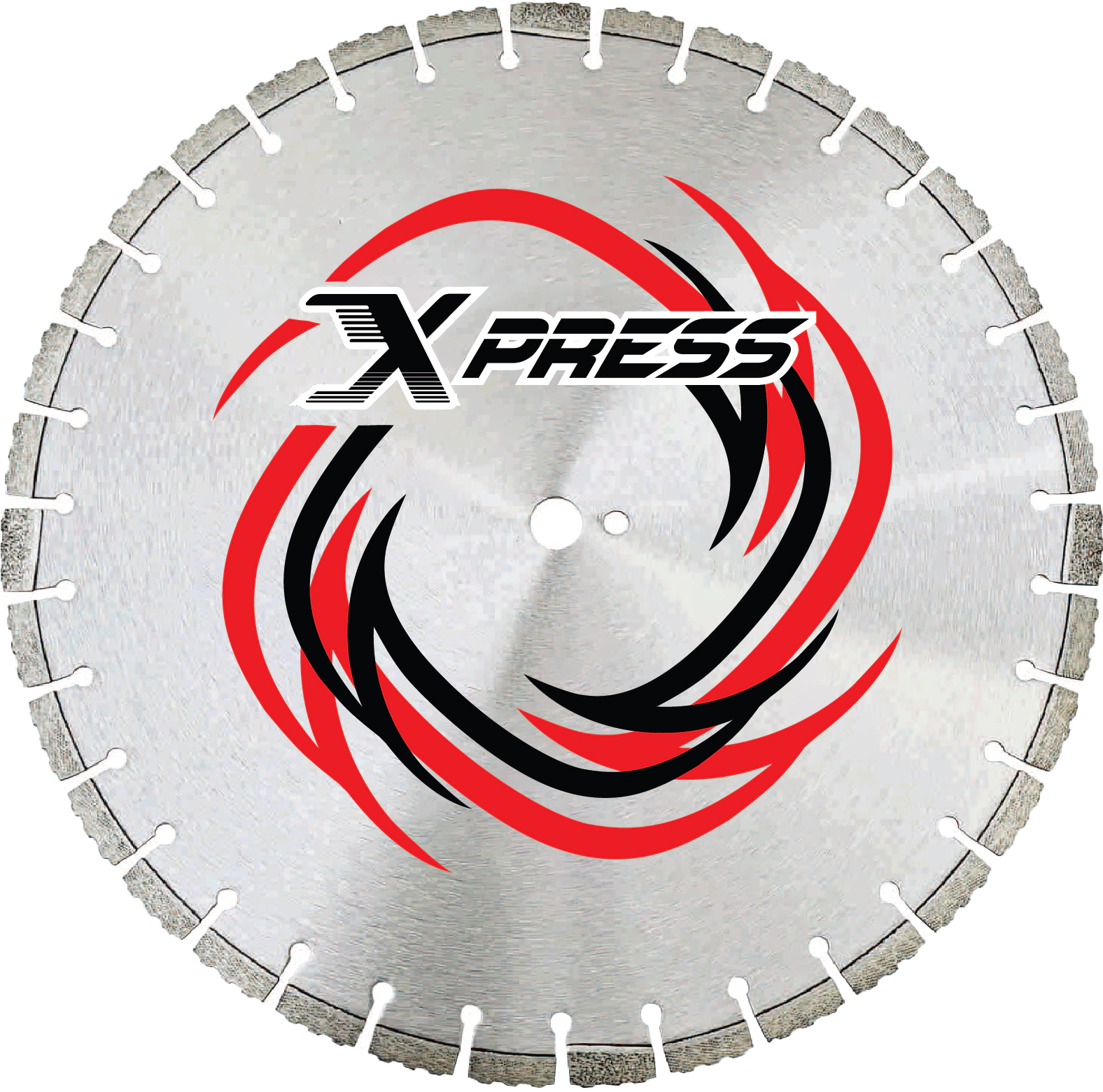

XPRESS CONCRETE Supreme Blades

Wet / Patterned diamond segments / Laser welded / For medium HP floor saws from 30 to 50 HP

Professional Wet Concrete Blades for Medium-Horsepower Floor Saws

Concrete cutting with medium-horsepower floor saws requires a blade that can provide reliable cutting speed, long service life, and stable segment retention during continuous wet cutting operations.

XPRESS CONCRETE Supreme Blades are designed for medium-horsepower saws from 30 to 50 HP and are manufactured using patterned diamond technology for faster cutting and longer blade life compared with traditional diamond technology.

The blades feature double laser-welded segments for added safety, with welding strength strictly checked on both sides using DIATOP’s torque test equipment. TCT inserts help protect against undercutting during cutting operations.

A range of bond options is available for different concrete hardness conditions, while the 12 mm segment height and slow-wave segment design support long blade life and smooth sawing.

Type of Equipment: FM(Flat Saws – 25 HP to 40 HP)

Key Features

• Manufactured using patterned diamond technology.
• Provides faster cutting and longer blade life compared with traditional diamond technology.
• DIATOP original Concrete Xpress blade designed for medium-horsepower saws from 30 to 50 HP.
• Provides faster cutting and longer cutting footage compared with conventional blades.
• Double laser-welded segments for added safety and to help prevent segment loss.
• Laser-welded segments are strictly checked on both sides using DIATOP’s unique torque test equipment.
• TCT inserts help protect against undercutting during cutting operations.
• Available bonds: Very hard, Medium hard, Medium, Medium soft, Soft.

Available Sizes

Item – D x T inch / D x T mm / Segment Height inch / Segment Height mm

• WCXFS 403212 – 16 x .125 inch / 400 x 3.2 mm / .472 inch / 12 mm
• WCXFS 453612 – 18 x .141 inch / 450 x 3.6 mm / .472 inch / 12 mm
• WCXFS 503612 – 20 x .141 inch / 500 x 3.6 mm / .472 inch / 12 mm
• WCXFS 504012 – 20 x .155 inch / 500 x 4.0 mm / .472 inch / 12 mm
• WCXFS 604212 – 24 x .165 inch / 600 x 4.2 mm / .472 inch / 12 mm
• WCXFS 604812 – 24 x .187 inch / 600 x 4.8 mm / .472 inch / 12 mm
• WCXFS 654812 – 26 x .187 inch / 650 x 4.8 mm / .472 inch / 12 mm
• WCXFS 704812 – 28 x .187 inch / 700 x 4.8 mm / .472 inch / 12 mm
• WCXFS 754812 – 30 x .187 inch / 750 x 4.8 mm / .472 inch / 12 mm
• WCXFS 804812 – 32 x .187 inch / 800 x 4.8 mm / .472 inch / 12 mm
• WCXFS 904812 – 36 x .187 inch / 900 x 4.8 mm / .472 inch / 12 mm

* Standard arbor is 25.4 mm with pin hole. Other arbor hole is as requested.

Quality Grade

WCXFS

: Supreme quality for medium-sized job sites.

12 mm segment height for long blade life. Slow-wave segments for smooth sawing.

Bond Selection

• Very hard
• Medium hard
• Medium
• Medium soft
• Soft

Typical Applications

wet concrete cutting, cured concrete cutting, concrete floor saw cutting, medium-horsepower floor saw cutting, concrete slab cutting, pavement cutting, roadway concrete cutting, industrial floor cutting, construction concrete cutting, patterned diamond blade cutting, smooth concrete sawing

Q1. What diamond blade is recommended for medium-horsepower concrete floor saws?

A. The XPRESS CONCRETE Supreme Blade is designed for medium-horsepower saws from 30 to 50 HP. It uses patterned diamond technology to provide faster cutting and longer blade life compared with traditional diamond technology.

Q2. What types of concrete can the XPRESS CONCRETE Supreme Blade be used for?

A. The XPRESS CONCRETE Supreme Blade is available in Very hard, Medium hard, Medium, Medium soft, and Soft bond options, allowing the blade to be selected according to different concrete hardness conditions.

Q3. What safety and durability features are used in the XPRESS CONCRETE Supreme Blade?

A. The XPRESS CONCRETE Supreme Blade uses double laser-welded segments to help prevent segment loss. The welding strength is strictly checked on both sides using DIATOP’s torque test equipment, while TCT inserts help protect against undercutting during cutting operations.

For blade selection guidelines, bond selection, recommended operating conditions, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
